RACEWORKS SILICONE HOSE STRAIGHT
Raceworks Silicone Hose is hand made and contains 5mm walls constructed from 4-ply reinforced silicone polyester, offering burst pressures of up to 348psi (see application table for individual ratings) and a temperature range of -40 to +180 degrees Celsius. All hoses are UV, ozone and electrochemically resistant to avoid fading and separation.
NOTE: Silicone hose is not fuel safe.
All Raceworks hoses feature solid 5mm walls constructed from 4-ply reinforced silicone polyester.

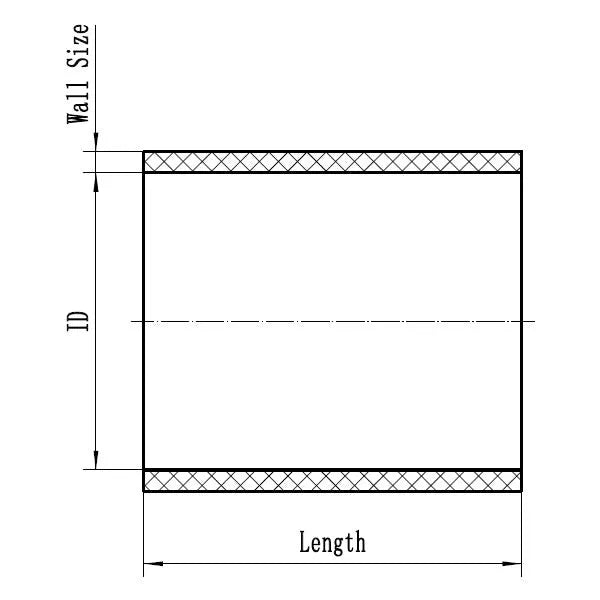

| Dia. Imp. | Dia. Metric | Part # Blue | Part # Black | Lth mm | Min. Burst Pres. |
|---|---|---|---|---|---|
| 0.50in | 13mm | SHS-050BE | SHS-050BK | 60mm | 348 PSI |
| 0.75in | 19mm | SHS-075BE | SHS-075BK | 60mm | 348 PSI |
| 1.00in | 25mm | SHS-100BE | SHS-100BK | 60mm | 348 PSI |
| 1.25in | 32mm | SHS-125BE | SHS-125BK | 60mm | 305 PSI |
| 1.50in | 38mm | SHS-150BE | SHS-150BK | 60mm | 305 PSI |
| 1.75in | 44mm | SHS-175BE | SHS-175BK | 60mm | 305 PSI |
| 1.75in | 44mm | SHS-175BES | SHS-175BKS | 127mm | 305 PSI |
| 2.00in | 51mm | SHS-200BE | SHS-200BK | 75mm | 218 PSI |
| 2.00in | 51mm | SHS-200BES | SHS-200BKS | 127mm | 218 PSI |
| 2.25in | 57mm | SHS-225BE | SHS-225BK | 75mm | 174 PSI |
| 2.25in | 57mm | SHS-225BES | SHS-225BKS | 127mm | 174 PSI |
| 2.50in | 63mm | SHS-250BE | SHS-250BK | 75mm | 174 PSI |
| 2.50in | 63mm | SHS-250BES | SHS-250BKS | 127mm | 174 PSI |
| 2.75in | 70mm | SHS-275BE | SHS-275BK | 75mm | 174 PSI |
| 2.75in | 70mm | SHS-275BES | SHS-275BKS | 127mm | 174 PSI |
| 3.00in | 76mm | SHS-300BE | SHS-300BK | 75mm | 174 PSI |
| 3.00in | 76mm | SHS-300BES | SHS-300BKS | 127mm | 174 PSI |
| 3.25in | 83mm | SHS-325BE | SHS-325BK | 90mm | 174 PSI |
| 3.50in | 89mm | SHS-350BE | SHS-350BK | 90mm | 145 PSI |
| 3.75in | 95mm | SHS-375BE | SHS-375BK | 90mm | 145 PSI |
| 4.00in | 102mm | SHS-400BE | SHS-400BK | 90mm | 145 PSI |
| 4.00in | 102mm | SHS-400BES | SHS-400BKS | 127mm | 145 PSI |
| 4.50in | 114mm | SHS-450BE | SHS-450BK | 90mm | 145 PSI |
| 5.00in | 127mm | SHS-500BE | SHS-500BK | 90mm | 145 PSI |
| 6.00in | 152mm | SHS-600BE | SHS-600BK | 90mm | 145 PSI |
