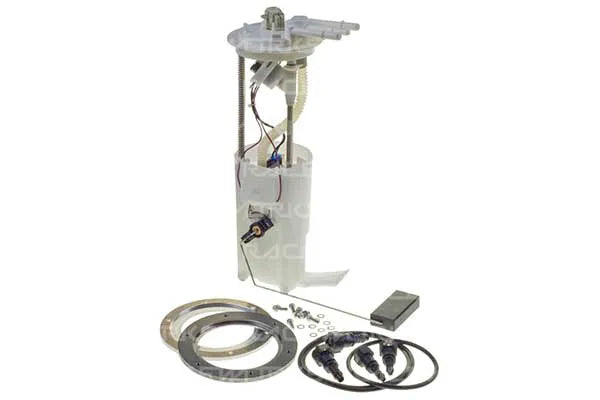

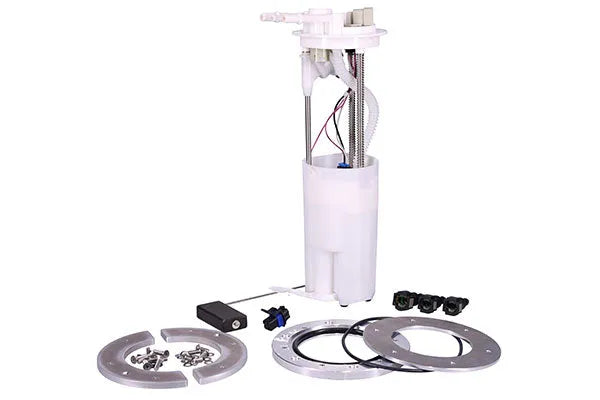

RACEWORKS STEEL TANK HOLDEN VX MRA CONVERSION KIT
Includes VX Commodore MRA (Module Reservoir Assembly)
Suitable for retrofitting into a steel tank
Dead end 4bar system (60psi)
Fuel Pressure regulator built into MRA
>Includes Steel or Aluminium Weld on Ring, Top clamp aluminium ring, stainless cap screws and washers, fuel safe seal, 3/8 and 5/16 Quick Disconnect to barb Fittings and >Includes Aluminium Bolt-in Top Clamp Ring, Lower Ring, Half Moon Rings for installation inside the tank, which are retained with included Countersunk screws. Electrical Connector
Suitable for tanks 255mm to 310mm High
Spring loaded to ensure that it sits on the bottom of the fuel tank
Fuel Level sender resistance 39-246 Ohms
Fuel Pump flows 160LPH @ 4bar with an 8A Current Draw
With Steel Weld Ring FSA-504
With Aluminium Weld Ring FSA-511
Bolt in FSA-516
