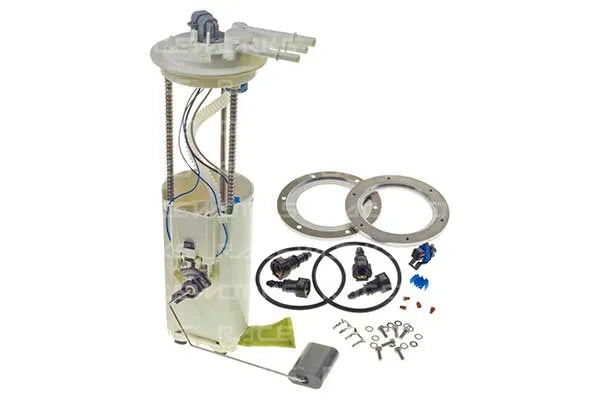

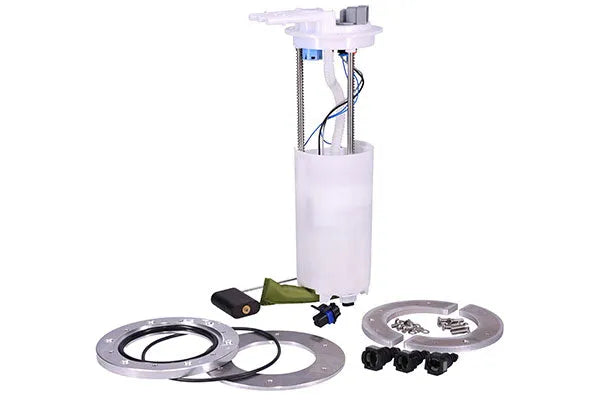

RACEWORKS STEEL TANK VT MRA CONVERSION KIT
Includes VT Commodore MRA (Module Reservoir Assembly)
Suitable for retrofitting into an old tank
Return System
>Includes steel or Aluminium Weld on Ring, Top clamp aluminium ring, stainless cap screws and washers, fuel safe seal
>Includes Aluminium Top Clamp Ring, Lower Ring, Half Moon Rings for installation inside the tank, which are retained with included Countersunk screws
3/8 and 5/16 Quick Disconnect to barb Fittings and Electrical Connector
Suitable for tanks 255mm to 310mm High
Spring loaded to ensure that it sits on the bottom of the fuel tank
Fuel Level sender resistance 39-246 Ohms
Fuel Pump flows 145LPH @ 3bar with a 8A Current Draw
With Steel Weld Ring FSA-503
With Aluminium Weld Ring FSA-510
Bolt-in FSA-515
