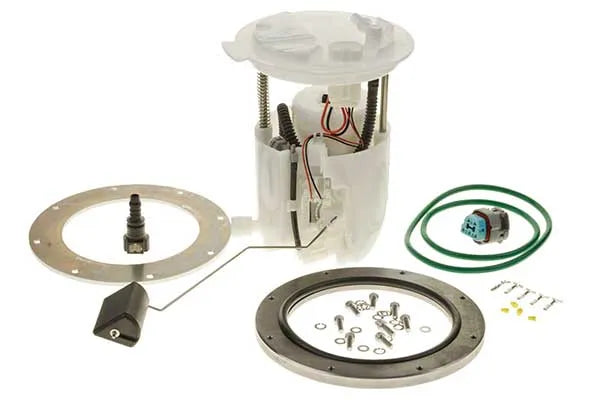

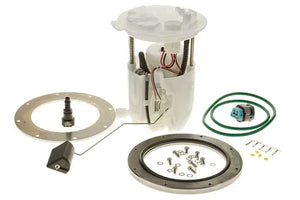

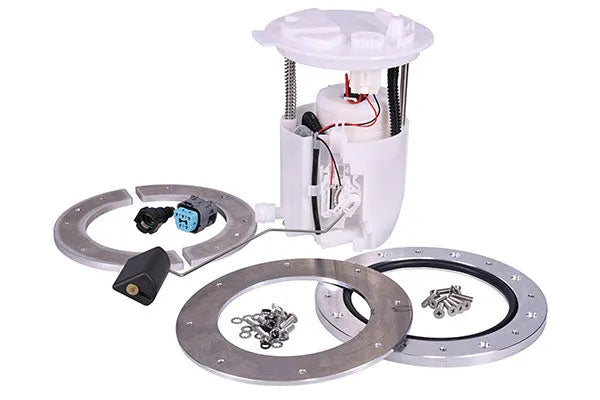

RACEWORKS VE MRA TANK CONVERSION KIT
Includes VE Commodore MRA (Module Reservoir Assembly)
Suitable for retrofitting into an old tank
Dead end 4bar system (60psi)
Fuel Pressure regulator built into MRA
>Includes Steel or Aluminium Weld on Ring, Top clamp aluminium ring
>Includes Aluminium Top Clamp Ring, Lower Ring, Half Moon Rings for installation inside the tank, which are retained with included Countersunk screws.
stainless cap screws and washers, fuel safe seal
3/8 Quick Disconnect to barb Fitting and Electrical Connector
Suitable for tanks 155mm to 180mm High
Spring loaded to ensure that it sits on the bottom of the fuel tank
Fuel Level sender resistance 40-250 Ohms
Fuel Pump flows 115LPH @ 4bar with a 9A Current Draw
With Steel Weld Ring FSA-502
With Aluminium Weld Ring FSA-509
Bolt-in FSA-517
