RACEWORKS 980CC MODIFIED BOSCH FULL LENGTH INJECTOR | INJ-505

INJ-505

Vendor: NZRACEWORKS
Regular price: $213.95
Sale price: $213.95
Regular price
Unit price: per

Tax included. Shipping calculated at checkout.

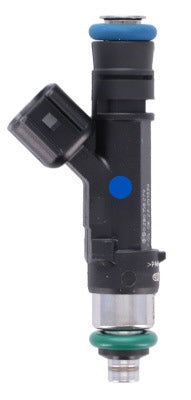

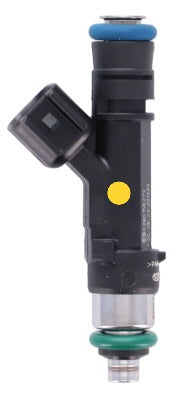

RACEWORKS 980CC RACEWORKS (MODIFIED BOSCH) FULL LENGTH INJECTOR

Modified/High Flowed Bosch Injector
Size: 980cc (95 Lb/hr) @ 3bar and 1150cc (110Lb/hr) @ 4bar.
Impedance: High (12 Ohms)
Plug: USCAR. Top O-Ring: 14mm.
Ethanol Methanol Safe
Spray Pattern: Narrow Cone
Spray Direction: Straight

Flow variance is +/- 1.5% (3% Total)

Download Injectors Size Charts PDF

Direct fit applications
Ford Falcon AU V8
Ford Falcon BA/BF 24V V8
Ford Falcon FG-X Supercharged V8
Ford Focus LR/LS/LT/LV Duratec I4
Ford Mustang V8
Mazda MX5 NC

Injectors are a direct fit physically, but as with all Raceworks Injectors, will require a tune. While the vehicles listed above are direct fit, the injector can be used in many other applications with the appropriate extensions, o-rings or plug adapters. SeeInjector Upgrade Guidefor more details.

FLYWHEEL POWER FIGURES (ESTIMATED) PER INJECTOR

Normally Aspirated Gasoline	185HP	140KW
Forced Inducted Low Boost Gasoline	155HP	115KW
Forced Inducted High Boost Gasoline	165HP	125KW

Normally Aspirated E85	140HP	105KW
Forced Inducted Low Boost E85	110HP	80KW
Forced Inducted High Boost E85	120HP	90KW
