RACEWORKS 240 Series Teflon Black Nylon Braid over PTFE Hose

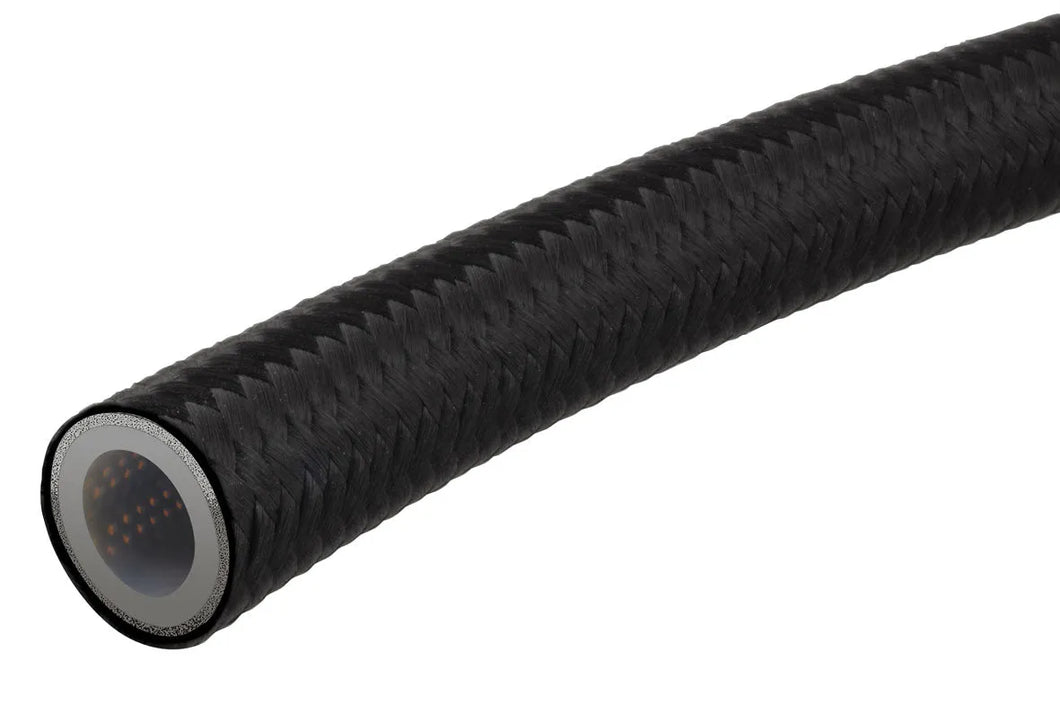

Raceworks 240 Series Black Nylon Braided Teflon hose is constructed from a PTFE (Teflon) inner tube that is compatible with all fuels oils nitrous including brake and clutch fluids. The PTFE (Teflon) tube has a black lightweight outer cover that is durable and resistant to abrasion and expansion. The Raceworks 240 Series Hose is the best option for use on fuel systems as it won't allow the permeation of fuel smell and has the highest pressure and temperature rating in the range of Raceworks hoses. All Raceworks products come with a 2 year warranty.
Temperature Range: -70C to 250C. Ethanol; Methanol Safe
Specifications
| Size | Operating Pressure | Burst Pressure | Inside dia Inch | Inside dia mm | Outside dia Inch | Outside dia mm | Weight (gm/m) | Bend Radius (mm) | |
|---|---|---|---|---|---|---|---|---|---|
| AN-3 | 3000psi | 10000psi | 1/8" | 3.1mm | 1/4" | 6.4mm | TBA | TBA | |
| AN-4 | 3000psi | 10000psi | 3/16" | 4.7mm | 5/16" | 7.9mm | 85g | 27mm | |
| AN-6 | 2500psi | 9000psi | 5/16" | 7.9mm | 15/32" | 11.8mm | 113g | 40mm | |
| AN-8 | 2000psi | 7000psi | 13/32" | 10.5mm | 17/32" | 13.3mm | 142g | 48mm | |
| AN-10 | 1500psi | 5000psi | 17/32" | 13.4mm | 41/64" | 16.2mm | 255g | 80mm | |
| AN-12 | 1200psi | 4500psi | 41/64" | 16.2mm | 49/64" | 19.3mm | 284g | 120mm |
