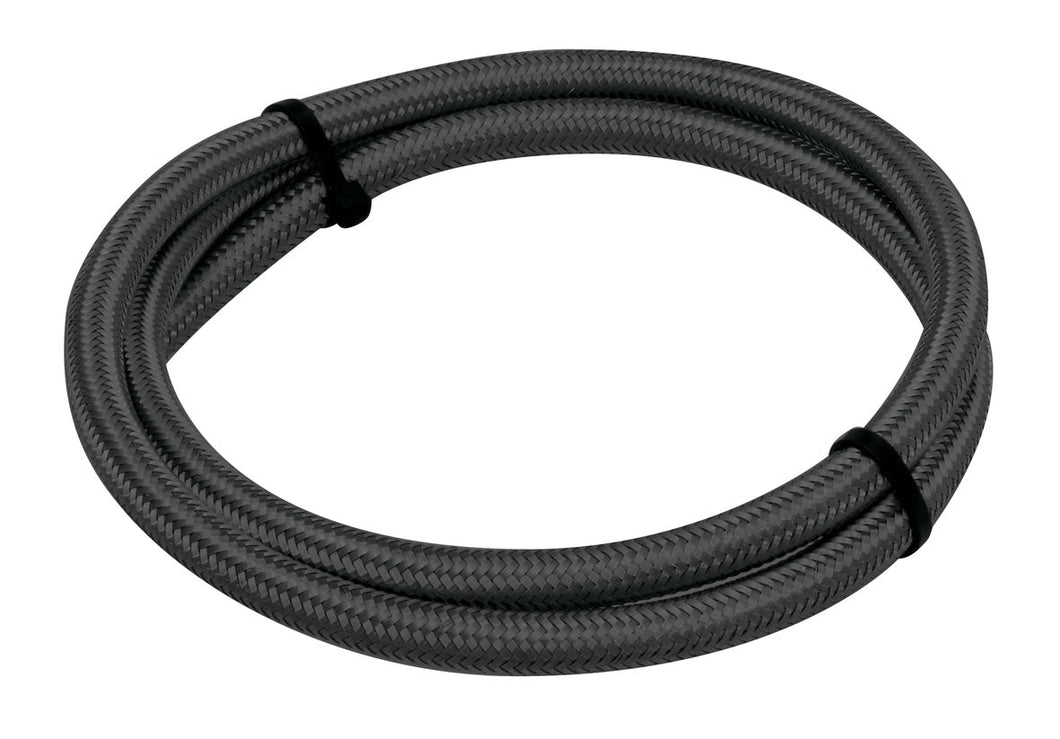

RACEWORKS 200 Series Teflon Stainless Braided Hose
Raceworks 200 Series Teflon Braided Hose is constructed from a PTFE (Teflon) inner tube that is compatible with all fuels oils nitrous including brake and clutch fluids. The PTFE (Teflon) tube is covered by a stainless steel outer cover that is durable and resistant to abrasion and expansion. The Raceworks 200 Series Hose is the best option for use on fuel systems as it won't allow the permeation of fuel smell and has the highest pressure and temperature rating in the range of Raceworks hoses. All Raceworks products come with a 2 year warranty.
Temperature Range: -70C to 250C. Ethanol; Methanol Safe
Specifications
| Size | Operating Pressure | Burst Pressure | Inside dia Inch | Inside dia mm | Outside dia Inch | Outside dia mm | Weight (gm/m) | Bend Radius (Inch) | Bend Radius (mm) |
|---|---|---|---|---|---|---|---|---|---|
| AN-3 | 3000psi | 10000psi | 1/8" | 3.1mm | 1/4" | 6.4mm | 66g | 0.95" | 24mm |
| AN-4 | 3000psi | 10000psi | 3/16" | 4.7mm | 5/16" | 7.9mm | 85g | 1.00" | 25mm |
| AN-6 | 2500psi | 9000psi | 5/16" | 7.9mm | 15/32" | 11.8mm | 139g | 1.30" | 33mm |
| AN-8 | 2000psi | 7000psi | 13/32" | 10.5mm | 17/32" | 13.3mm | 176g | 1.69" | 43mm |
| AN-10 | 1500psi | 5000psi | 17/32" | 13.4mm | 41/64" | 16.2mm | 222g | 2.09" | 53mm |
| AN-12 | 1200psi | 4500psi | 41/64" | 16.2mm | 49/64" | 19.3mm | 246g | 4.53" | 115mm |
