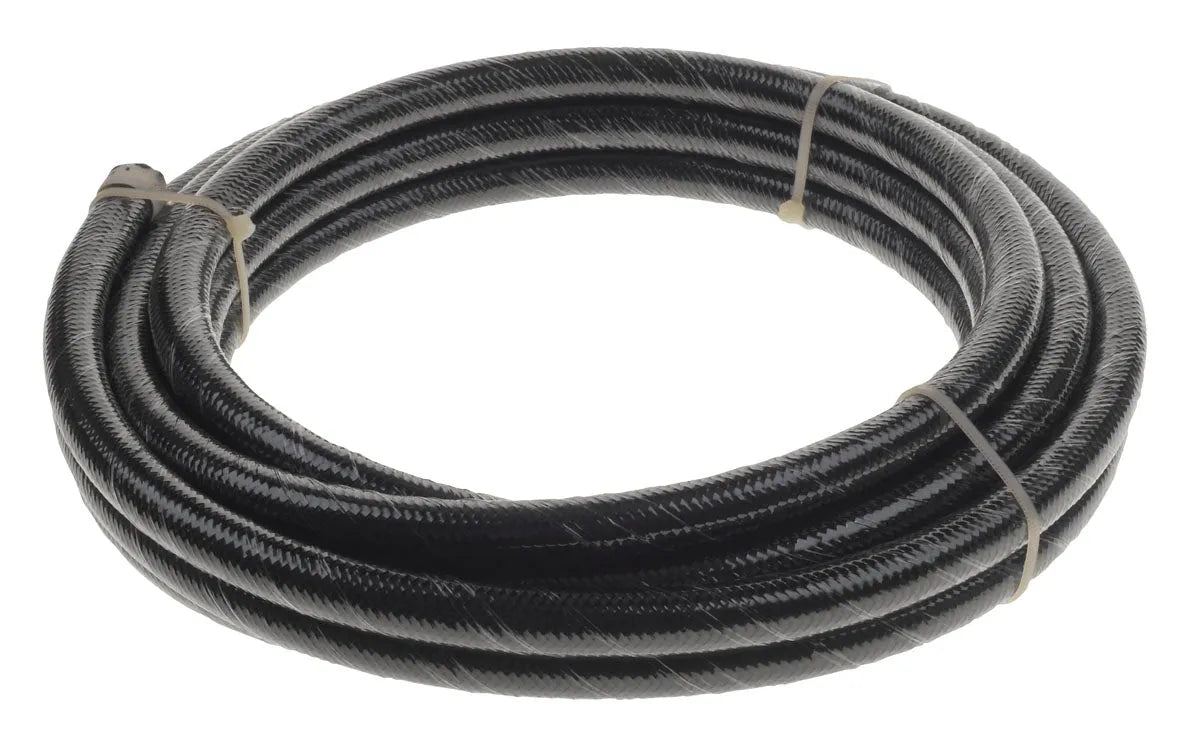

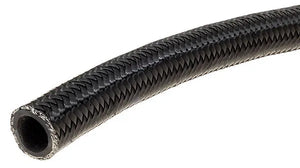

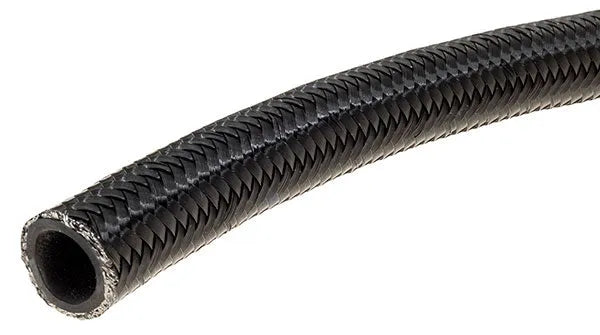

RACEWORKS 140 Series Black Braided Cutter E85 Hose
Raceworks 140 Series Cutter Black Braided Hose is resistant to high pressure temperature abrasion and corrosion. The internal hose is a reinforced Chlorinated Polyethylene (CPE) synthetic rubber with a black double outer braid. Suitable for use with regular fuel E95 E10 Methanol Oils Synthetic Lubricants and Coolant. All Raceworks products come with a 2 year warranty.
Temperature Range: -40C to 150C. Ethanol; Methanol Safe
Specifications
| Size | Operating Pressure | Burst Pressure | Inside dia mm | Outside dia mm | Weight (gm/m) | Bend Radius (mm) | |||
|---|---|---|---|---|---|---|---|---|---|
| AN-4 | 1000psi | 6000psi | 5.5mm | 11.1mm | TBA | TBA | |||
| AN-6 | 1000psi | 6000psi | 8.7mm | 13.8mm | TBA | TBA | |||
| AN-8 | 1000psi | 5000psi | 11.1mm | 15.7mm | TBA | TBA | |||
| AN-10 | 1000psi | 5000psi | 14.2mm | 20.8mm | TBA | TBA | |||
| AN-12 | 1000psi | 3750psi | 17.4mm | 23.9mm | TBA | TBA | |||
| AN-16 | 750psi | 2500psi | 22.2mm | 30.5mm | TBA | TBA | |||
| AN-20 | 500psi | 2000psi | 28.5mm | 35.8mm | TBA | TBA |
