RACEWORKS 120 Series Black Nylon Braided Cutter E85 Hose

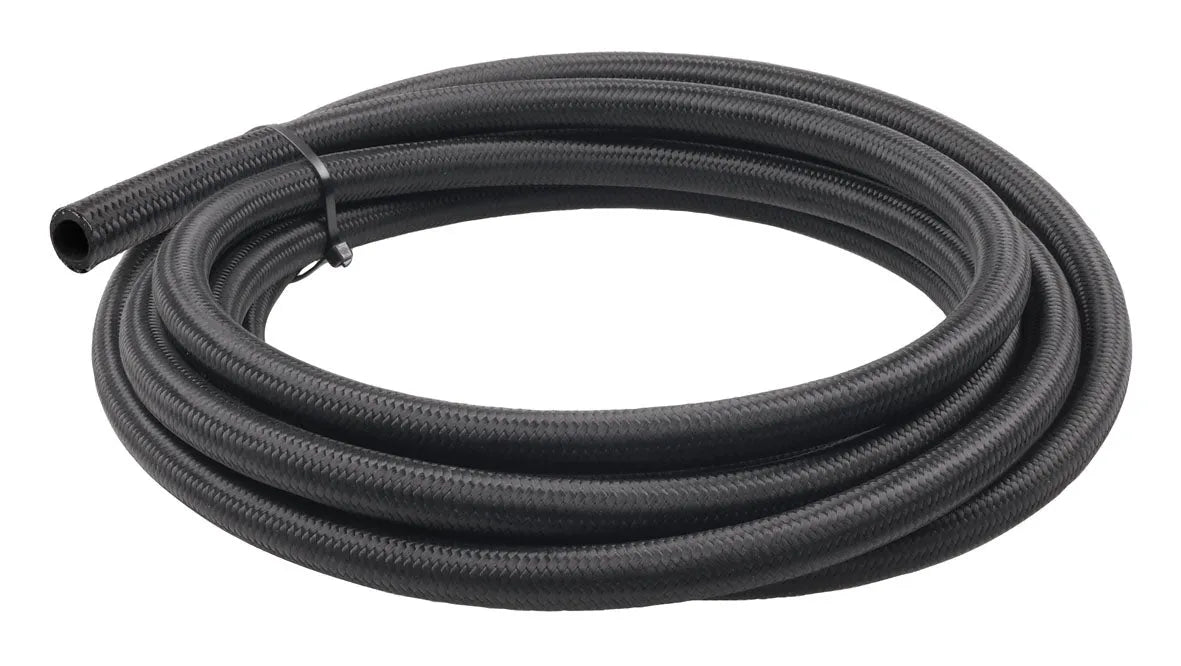

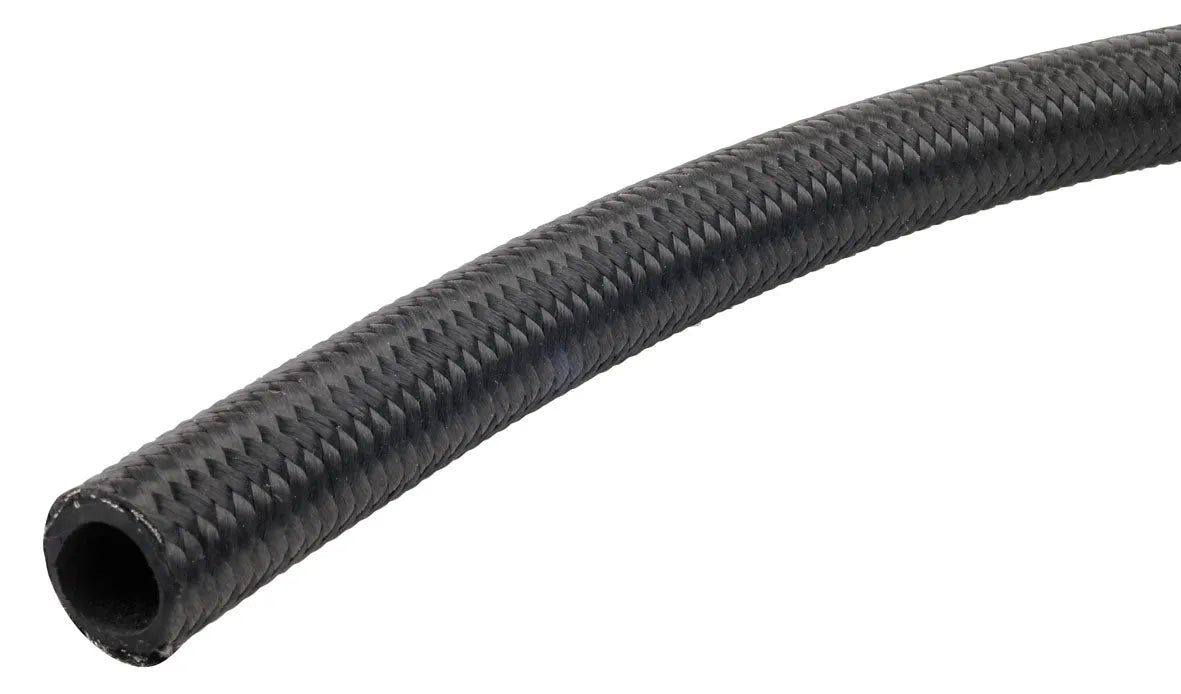

Raceworks 120 Series Black Nylon Braided Hose is lighter than traditional stainless steel braided hose. It is resistant to high pressure temperature abrasion and corrosion. The internal hose is a reinforced Chlorinated Polyethylene (CPE) synthetic rubber with a light weight black nylon outer braid. Suitable for use with regular fuel E85 E10 methanol oils synthetic lubricants and coolant. All Raceworks products come with a 2 year warranty.
Temperature Range: -40C to 150C. Ethanol; Methanol Safe
Specifications
| Size | Operating Pressure | Burst Pressure | Inside dia mm | Outside dia mm | Weight (gm/m) | Bend Radius (Inch) | Bend Radius (mm) | ||
|---|---|---|---|---|---|---|---|---|---|
| AN-6 | 500psi | 2000psi | 8.7mm | 13.8mm | 157g | 1.30" | 33mm | ||
| AN-8 | 500psi | 2000psi | 11.1mm | 15.7mm | 198g | 1.69" | 43mm | ||
| AN-10 | 500psi | 2000psi | 14.2mm | 20.8mm | 275g | 2.09" | 53mm | ||
| AN-12 | 350psi | 1400psi | 17.4mm | 23.9mm | 324g | 2.36" | 60mm | ||
| AN-16 | 350psi | 1400psi | 22.2mm | 30.5mm | 414g | 4.13" | 105mm | ||
| AN-20 | 350psi | 1400psi | 28.5mm | 35.8mm | 567g | 4.33" | 110mm |
