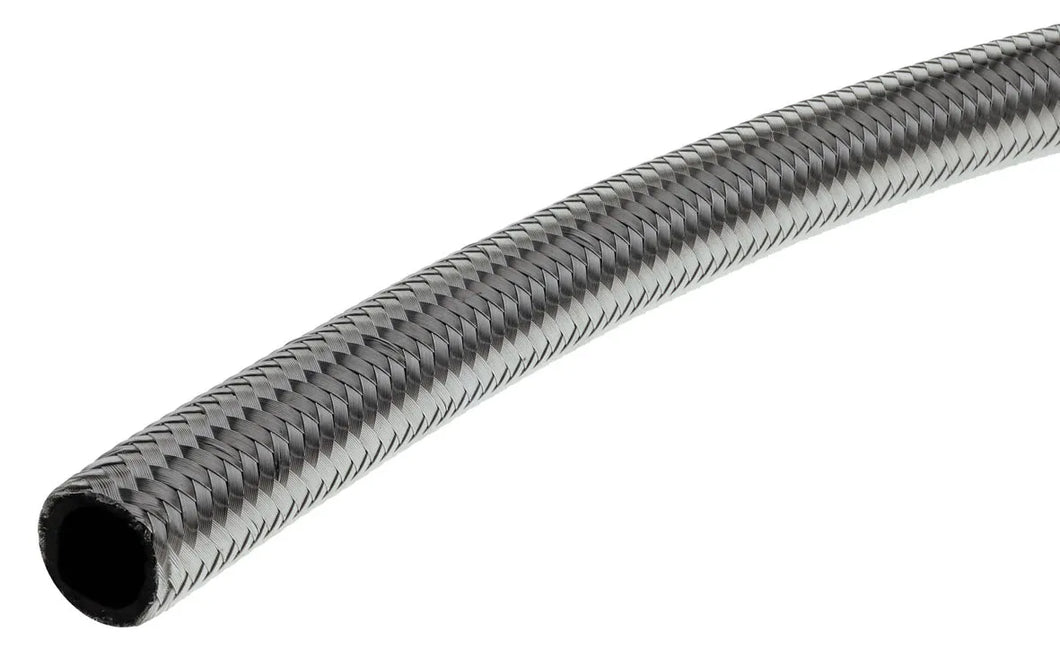

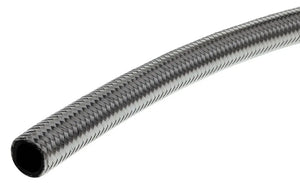

RACEWORKS 100 Series Stainless Braided Cutter E85 Hose
Raceworks 100 Series Stainless Steel Braided Hose is resistant to high pressure temperature abrasion and corrosion. The internal hose is a reinforced Chlorinated Polyethylene (CPE) synthetic rubber with a stainless steel double outer braid. Suitable for use with regular fuel E85 E10 methanol oils synthetic lubricants and coolant. All Raceworks products come with a 2 year warranty.
Temperature Range: -40C to 150C. Ethanol; Methanol Safe
Specifications
| Size | Operating Pressure | Burst Pressure | Inside dia (mm) | Outside dia mm | Weight (gm/m) | Bend Radius (mm) | |||
|---|---|---|---|---|---|---|---|---|---|
| AN-4 | 1000psi | 6000psi | 5.5 | 11.1 | 151g | 25mm | |||
| AN-6 | 1000psi | 6000psi | 8.7 | 13.8 | 196g | 33mm | |||
| AN-8 | 1000psi | 5000psi | 11.1 | 15.7 | 253g | 43mm | |||
| AN-10 | 1000psi | 5000psi | 14.2 | 20.8 | 365g | 53mm | |||
| AN-12 | 1000psi | 3750psi | 17.4 | 23.9 | 471g | 60mm | |||
| AN-16 | 750psi | 2500psi | 22.2 | 30.5 | 567g | 105mm | |||
| AN-20 | 500psi | 2000psi | 28.5 | 35.8 | 850g | 160mm |
