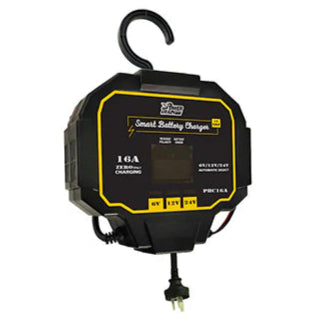

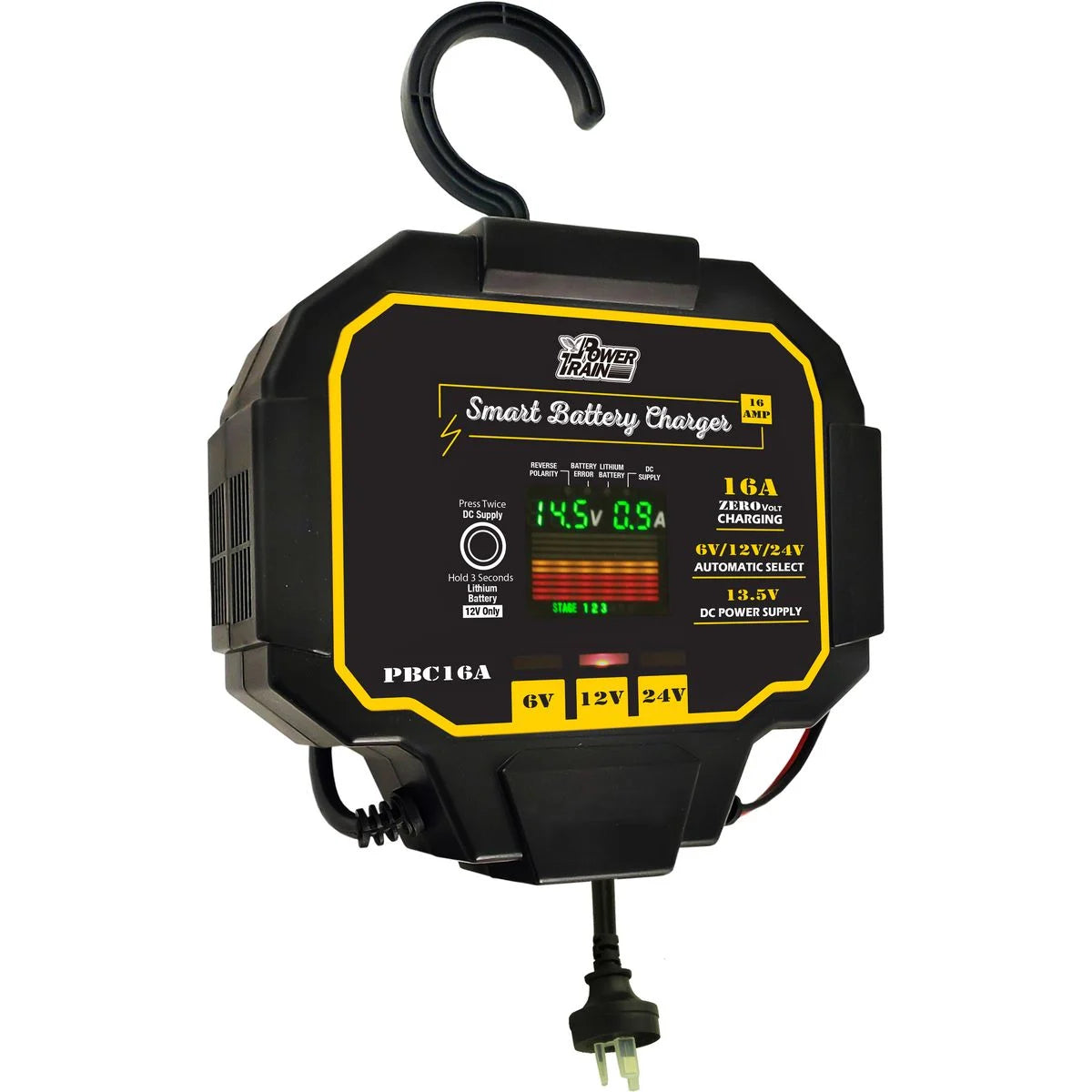

6V/12V/24V 16A 7 STAGE BATTERY CHARGER
Features:
– Button-less automatic battery voltage selection. This charger is suitable for 6 Volt, 12 Volt and 24 Volt DC automotive batteries.
– Button-less automatic battery chemistry selection, suitable for GEL, LEAD ACID, AGM, and Maintenance Free ,Calcium types of automotive batteries.
– Large easy to read LED display shows the charging stage status, volts and amps output and battery capacity.
– Inbuilt protection systems for safe operation.
– Zero volt start up, enabling recovery and charging of a completely deep discharged battery. But any load must be removed from the rechargeable battery.
– Internal or external short circuit, reverse connection, over temperature, overload and over voltage protection.
– For these products, the charger can be hung with a hook, and the power cable can be wound on the back.
Model no: PBC16A
Charger type: Automatic 7 Stage switch
mode Trickle charging
Input voltage: AC(230V-240V)/50Hz
Lithium compatible: No
Output voltage: 6V / 12V / 24V DC (Charger
will auto select)
Output current: 16A @6V/12V, 8A@24V
DO NOT ATTEMPT TO CHARGE DRY CELL BATTERIES
Zero volt start: Yes
Warranty: 5 years
Short circuit, Reverse connection, overload, over-voltage, over-charging, over-temperature protection: Yes
Battery Charging Capacity: 40Ah to 200Ah
Product casting: Plastic
Operating temperature: -15°C — +50°C
