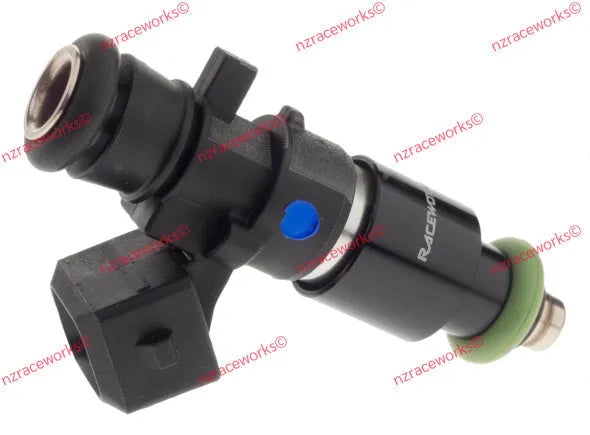

RACEWORKS 1200CC 3/4 LENGTH | INJ-503

RW 1200CC (MODIFIED BOSCH) 3/4 LENGTH 14MM BOSCH CONNECTOR

Modified/High Flowed Bosch Injector
Size: 1200cc (114 Lb/hr) @ 3bar and 1380cc (131Lb/hr) @ 4bar.
Impedance: High (12Ohms)
Plug: Bosch. Top O-Ring: 14mm.
Ethanol; Methanol Safe
Spray Pattern: Narrow Cone
Spray Direction: Straight

Flow variance is +/- 1.5% (3% Total)

Download Injector Calibration Data PDF
Download Injectors Size Charts PDF

*Direct fit applications
Ford Falcon FG/FG-X Turbo I6

*Injectors are a direct fit physically, but as with all Raceworks Injectors, will require a tune. While the vehicles listed above are direct fit, the injector can be used in many other applications with the appropriate extensions, o-rings or plug adapters. SeeInjector Upgrade Guidefor more details.

FLYWHEEL POWER FIGURES (ESTIMATED) PER INJECTOR
