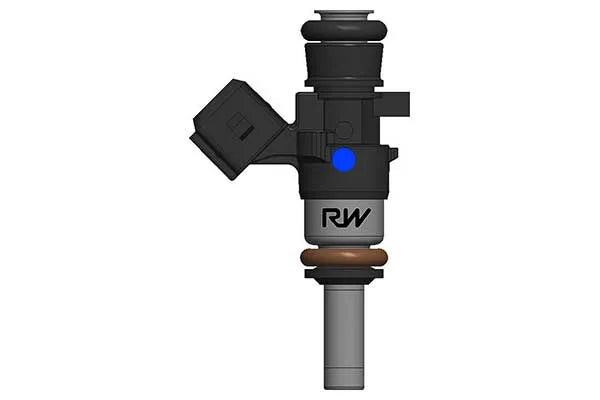

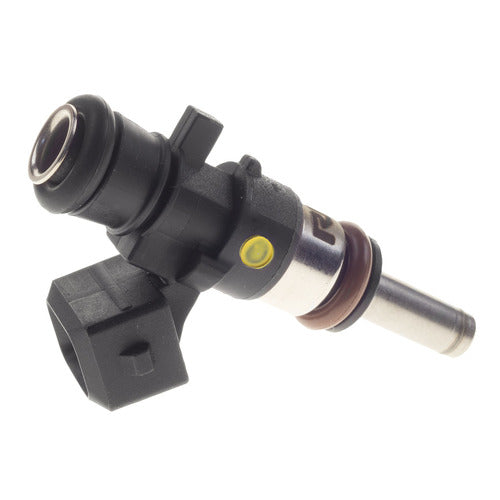

RACEWORKS 1200CC RACEWORKS (MODIFIED BOSCH) SHORT INJECTOR EXTENDED NOSE
Modified/High Flowed Bosch Injector
Size: 1200cc (114 Lb/hr) @ 3bar and 1380cc (131Lb/hr) @ 4bar.
Impedance: High (12Ohms)
Plug: Bosch. Top O-Ring: 14mm.
Ethanol; Methanol Safe
Spray Pattern: Narrow Cone
Spray Direction: Straight
Flow variance is +/- 1.5% (3% Total)
Download Injector Calibration Data PDF
Download Injectors Size Charts PDF
FLYWHEEL POWER FIGURES (ESTIMATED) PER INJECTOR
| Normally Aspirated Gasoline | 230HP | 175KW |
| Forced Inducted Low Boost Gasoline | 195HP | 145KW |
| Forced Inducted High Boost Gasoline | 210HP | 155KW |
| Normally Aspirated E85 | 170HP | 125KW |
| Forced Inducted Low Boost E85 | 140HP | 105KW |
| Forced Inducted High Boost E85 | 150HP | 115KW |
