RACEWORKS 1100CC MODIFIED BOSCH SHORT INJECTOR | INJ-500

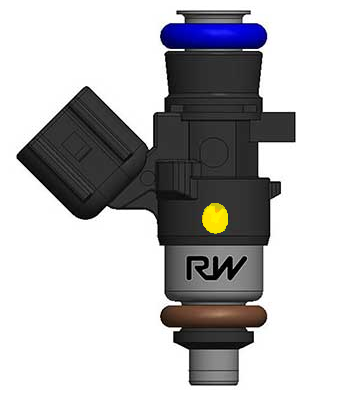

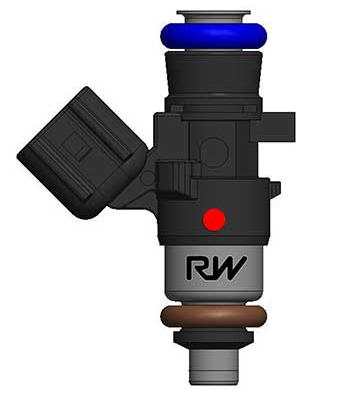

RACEWORKS 1100CC modified Bosch Short INJECTOR

Modified/High Flowed Bosch Injector
Size: 1100cc ( 105 Lb/hr) @ 3bar and 1300cc (124 Lb/hr) @ 4bar.
Impedance: High (12 Ohms)
Plug: USCAR. Top O-Ring: 14mm. Bottom O-Ring: 15mm.
Ethanol; Methanol Safe
Spray Pattern Narrow Cone
Spray Direction Straight

Flow variance is +/- 1.5% (3% Total)

Download Injector Calibration Data PDF
Download Injectors Size Charts PDF

*Direct fit applications
Holden Commodore VZ 6.0L V8
Holden Commodore VE L76/L77/L98/LS3
Holden Commodore VE LS7
Holden Commodore VF V8

*Injectors are a direct fit physically, but as with all Raceworks Injectors, will require a tune. While the vehicles listed above are direct fit, the injector can be used in many other applications with the appropriate extensions, o-rings or plug adapters. See Injector Upgrade Guide for more details.

FLYWHEEL POWER FIGURES (ESTIMATED) PER INJECTOR
