9" LED DRIVING LAMP SPOT BEAM 25Deg 9-36V 120Watt CHRME FACE

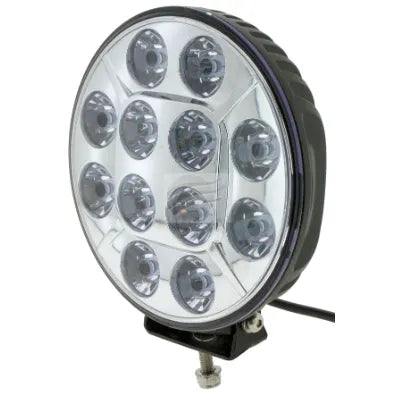

7" IGNITE ROUND SLIMLINE LED DRIVING LIGHT 9 - 36 VOLT 60 WATT
WITH CHROME FASCIA
10° SPOT (PENCIL) BEAM
12 X 5 WATT HIGH INTENSITY LG LED'S
5,400 RAW AND 4,590 EFFECTIVE LUMENS AND 6,500K
1 LUX @ 437M AND 190,625CD PEAK BEAM INTENSITY
CURRENT DRAW: 4.2AMP @ 12 VOLT AND 2AMP @ 24 VOLT
PATENTED TIR POLYCARBONATE RETRACTORS AND REFLECTORS WITH LEXAN POLYCARBONATE LENS
INTEGRATED ELECTRONIC THERMAL MANAGEMENT (ETM)
BLACK ANODISED POWDER COATED DIE CAST ALUMINIUM ALLOY (ADC12) HOUSING WITH INTEGRATED
HEAT-SINK AND PRESSURE EQUALISING VENT
STAINLESS STEEL (SUS304) MULTIPLE BOLT MOUNT BRACKET AND HARDWARE
230MM LEAD WITH 2 PIN DEUTSCH PLUG
OVER AND UNDER VOLTAGE PROTECTION
REVERSE POLARITY PROTECTION
UV, WATER AND SHOCK RESISTANT TO 6G
ANTI-RUST, CORROSION AND FREEZING RESISTANCE
50,000 HOURS LED LIFESPAN
ECE R112 (REF 30), R10, R7 AND CE APPROVED
IP68 AND IP69K RATING
ENVIRONMENT TEMPERATURE: -40°C ~ +60°C
5 YEAR WARRANTY
WEIGHT: 700G
.
SPARE PARTS:-
IBB50MM BULL BAR MOUNTING BRACKET 50MM
IBB64MM BULL BAR MOUNTING BRACKET 64MM
IBB76MM BULL BAR MOUNTING BRACKET 76MM
