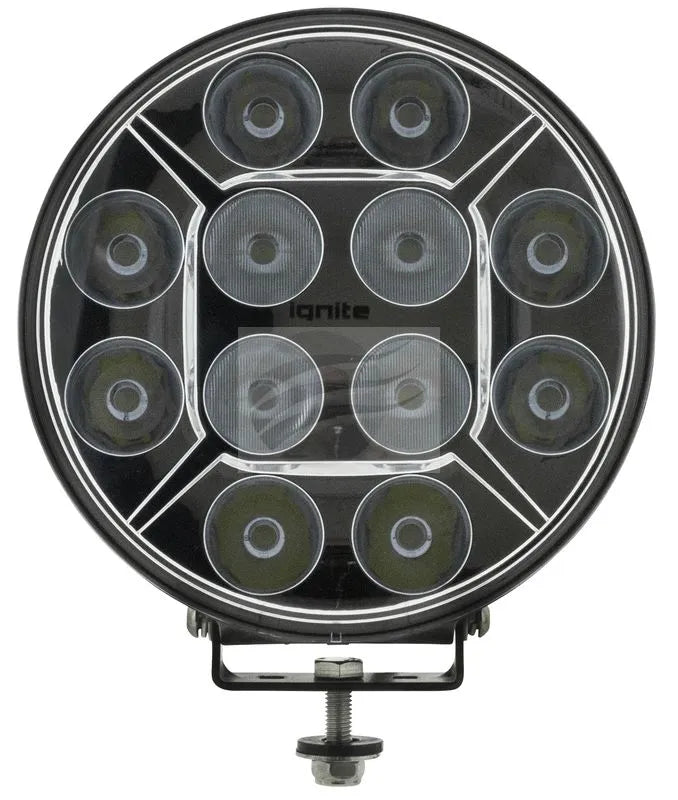

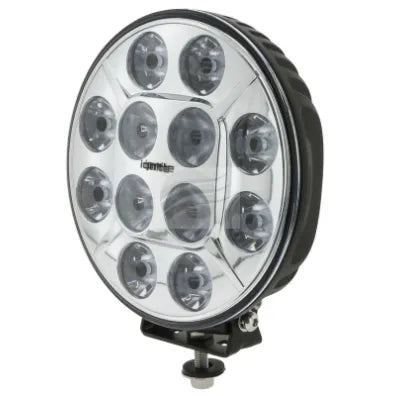

9" LED DRIVING LAMP FLOOD/SPOT BEAM 25Deg 9-36V 120Watt CHRME
9" IGNITE ROUND SLIMLINE LED DRIVING LIGHT 9 - 36 VOLT 120 WATT
WITH CHROME FASCIA
10° COMBINED SPOT (PENCIL) AND 30° FLOOD (SPREAD) BEAM
12 X 10 WATT HIGH INTENSITY CREE LED'S
12,000 RAW AND 9,600 EFFECTIVE LUMENS AND 6,500K
297,025CD PEAK BEAM INTENSITY
CURRENT DRAW: 7.7AMP @ 12 VOLT AND 3.6AMP @ 24 VOLT
PATENTED TIR POLYCARBONATE RETRACTORS AND REFLECTORS WITH LEXAN POLYCARBONATE LENS
INTEGRATED ELECTRONIC THERMAL MANAGEMENT (ETM)
BLACK ANODISED POWDER COATED DIE CAST ALUMINIUM ALLOY (ADC12) HOUSING WITH INTEGRATED
HEAT-SINK AND PRESSURE EQUALISING VENT
STAINLESS STEEL (SUS304) MULTIPLE BOLT MOUNT BRACKET AND HARDWARE
230MM LEAD WITH 2 PIN DEUTSCH PLUG
OVER AND UNDER VOLTAGE PROTECTION
REVERSE POLARITY PROTECTION
UV, WATER AND SHOCK RESISTANT TO 6G
ANTI-RUST, CORROSION AND FREEZING RESISTANCE
50,000 HOURS LED LIFESPAN
ECE R112 (REF 37.5), R10, R7 AND CE APPROVED
IP68 AND IP69K RATING
ENVIRONMENT TEMPERATURE: -40°C ~ +60°C
5 YEAR WARRANTY
WEIGHT: 900G
.
SPARE PARTS:-
IDL1210A AMBER PROTECTIVE LENS COVER
IDL1210C CLEAR PROTECTIVE LENS COVER
IBB50MM BULL BAR MOUNTING BRACKET 50MM
IBB64MM BULL BAR MOUNTING BRACKET 64MM
IBB76MM BULL BAR MOUNTING BRACKET 76MM
