BMC AIR FILTERS - CHAMPIONS CHOICE
Technical features Twin Air
| Flanges |
1
|
|---|---|
| Flange Length (mm) |
43
|
| Flange Inside Diameter Ø1 (mm) |
60
|
| Base Outside Diameter Ø2 (mm) |
150
|
| Height - H2 (mm) |
183
|
| Height - H1 (mm) |
140
|
| Top Outside Diameter Ø3 (mm) |
134
|
| Top material - Finish |
Plastic
|

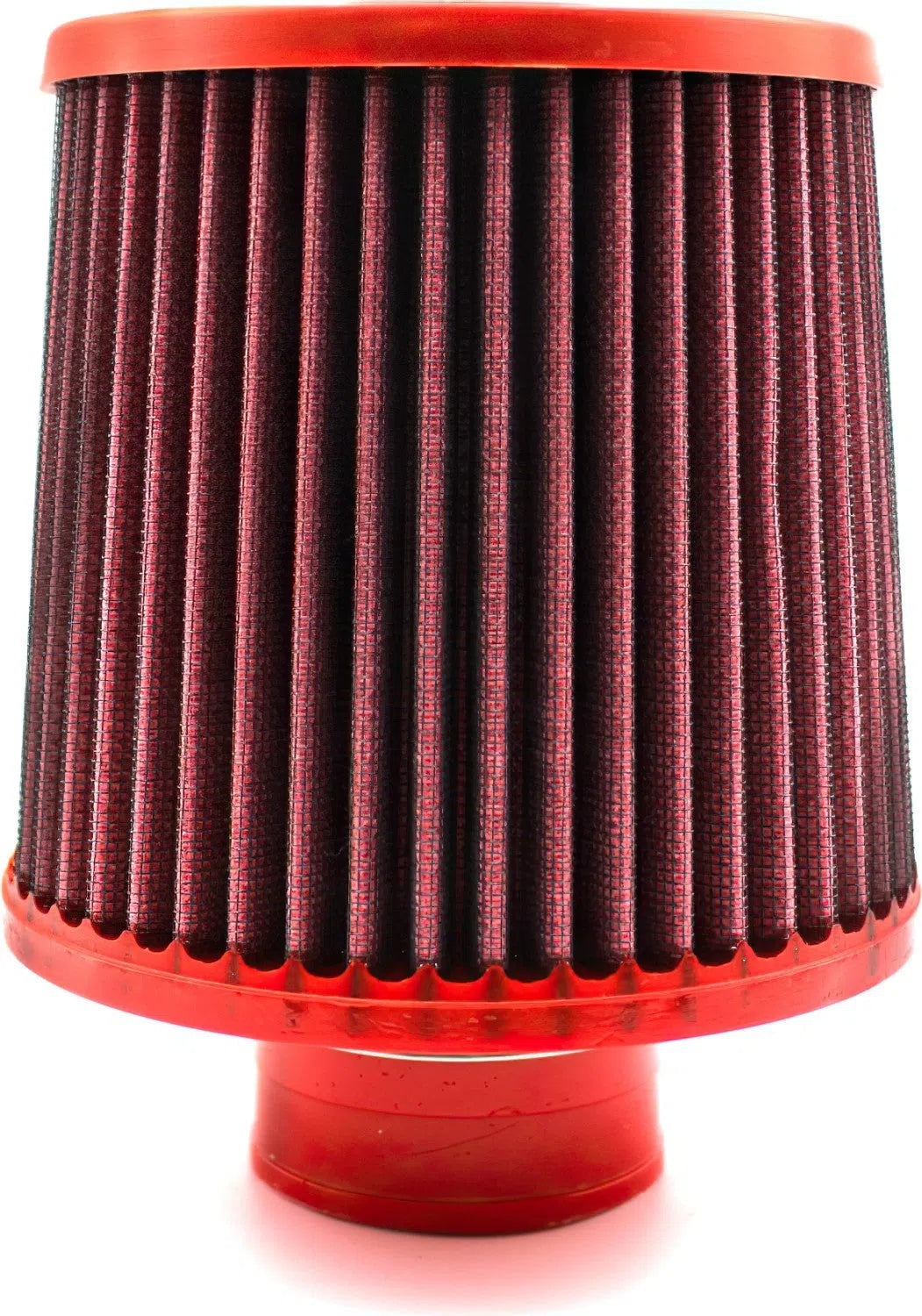

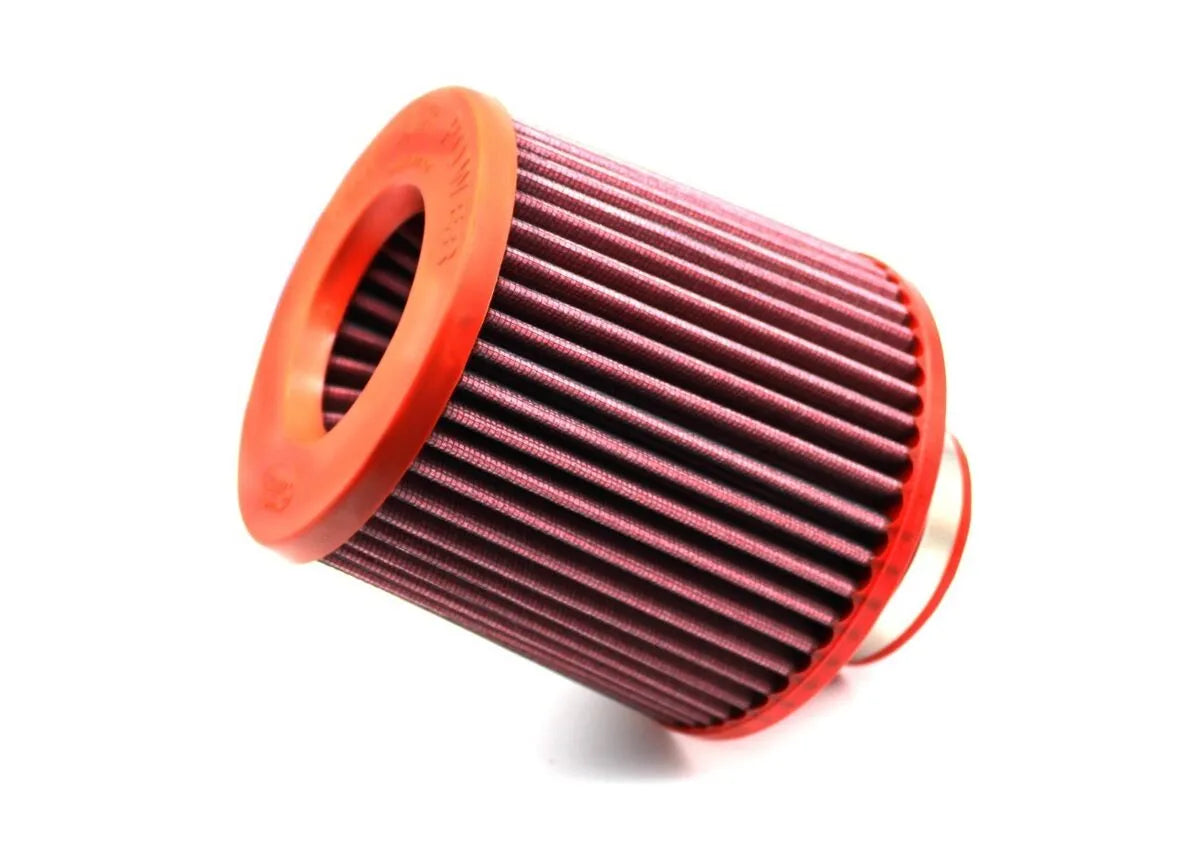

The BMC air filter is composed of a metallic mesh containing an oiled multilayer cotton filtration material. This guarantees a high level of filtering efficiency and a limited loss of air pressure. The oil used gives the material its sticky adhesive characteristic which aids in the retention of air impurities without compromising or blocking air flow penetration. This also creates a continuous filtering process. The cotton filtrating element is contained within an external support frame which interfaces with the air-box and allows it to be securely installed. Every stage of the production process, from design to manufacturing, is carried out in Italy by Italian engineers and uses the finest quality materials.
