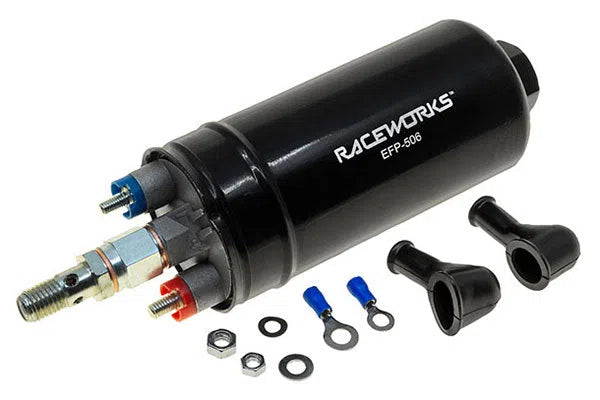

RACEWORKS 300LPH E85 EXTERNAL FUEL PUMP (044 STYLE)
300LPH @ 3Bar (13.5V). 044 Equivalent, 60.5mm Pump Diameter, External Check Valve. E85 Safe
250LPH @ 5bar (12V). 044 Equivalent, 60.5mm Pump Diameter, External Check Valve. E85 Safe
For intank use, Raceworks purchase a strainer kit
Inlet Options
| AN-6 Adapter | RWF-734-06BK |
| AN-8 Adapter | RWF-734-08BK |
| AN-10 Adapter | RWF-734-10BK |
| AN-12 Adapter | RWF-734-12BK |
| 3/8 Barb Adapter | RWF-414-M18-06BK |
| 1/2 Barb Adapter | RWF-414-M18-08BK |
| 5/8 Barb Adapter | RWF-414-M18-10BK |
Outlet Options
Using included Check Valve
Note: when using the included Check Valve with a banjo kit, outlet will be on a right angle to the pump.
Using a High Flow Inline Check Valve
| AN-6 | RWF-612-06BK |
| AN-8 | RWF-612-08BK |
Using No Check Valve
| AN-6 Adapter | RWF-731-06BK |
| AN-8 Adapter | RWF-731-08BK |
| AN-10 Adapter | RWF-731-10BK |
| 5/16 Barb Adapter | RWF-414-M12-05BK |
| 3/8 Barb Adapter | RWF-414-M12-06BK |
| 1/2 Barb Adapter | RWF-414-M12-08BK |
What is a Check Valve?
A Check Valve, also known as a one-way valve, allows flow in one direction only, and prevents back flow (reverse flow). In the case of a fuel system, this valve ensures that fuel pressure in the line is maintained, allowing the engine to start faster even if the fuel system has not been sufficiently primed.
