WHAT IS CODEBREAKER TECHNOLOGY?
Tap into the unseen data of your vehicle's engine with the Codebreaker.
The CODEBREAKER connects to your vehicle's Data Link Connector (DLC) port and communicates with the On-Board Diagnostics (OBD2) system within the Engine Control Unit (ECU), giving you access to malfunction codes and a range of other data.
These easy to install devices help you troubleshoot problems in your vehicle's engine without getting your hands dirty. Codebreaker technology clearly provides you with accurate information about the inner workings of the ECU in a method that is non-invasive. With two models to choose from, mechanics and car enthusiasts alike find answers with Codebreaker.
HOW DOES CODEBREAKER HELP ME?
Trouble codes appear as a string of letters and numbers. These trouble codes are incomprehensible without a reference.
Codebreaker supplies this reference by scanning your vehicle's OBD2 system and diagnosing any problems present, displaying them clearly on screen. Our handheld model is capable of scanning and reading trouble codes present in an engine ECU. Our 4-Mode model also scans trouble codes, but further investigates the inner workings of the ECU by gauging operating data, tracking trip information and reviewing past trips.

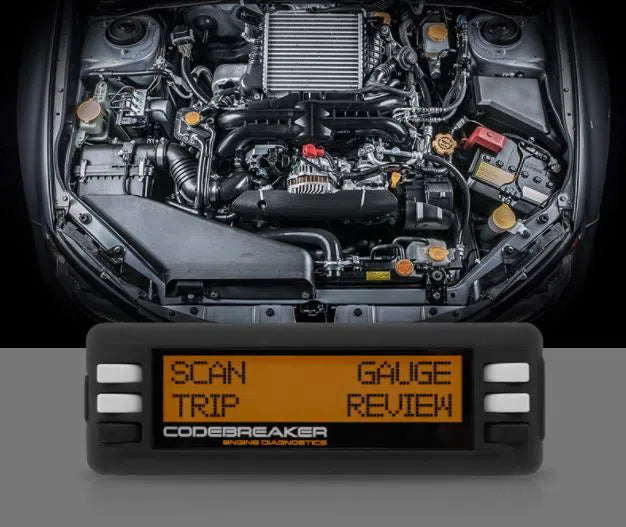

Codebreaker 4 Mode OBD2 Computer
Hack it like a mechanic with our dash-mounted Codebreaker!
With 4 modes to delve into, this tool will help you further investigate the inner workings of your vehicle's Engine Control Unit (ECU).
The Codebreaker 4Mode supports the following protocols; CAN, KWP2000, ISO9141, J1850 VPW, J1850 PWM and supports OBDII/EOBD 16 pin cars
Installation
No tools required! The 4-Mode OBD2 Computer can be mounted anywhere on the vehicle dashboard in just minutes. Connecting directly to your vehicle's OBD2 system via the Data Link Connector (DLC) located under your dash, this device is easy to install and capable of monitoring engine performance; fuel economy.
Features:
Plug; Play fitment
Easily monitor engine performance; fuel economy
Save time; money with engine fault diagnosis
Trip Computer
Digital Gauges
Fault Scanner
Data Memory
SCAN TOOL
Troubleshoot engine fault codes on OBD2/EOBD compliant vehicles (most vehicles manufactured in Aus; NZ since 2006).
- Read; clear trouble codes
- Easily determine the cause of the Check Engine/Malfunction Indicator Light (MIL)
- Turns off Check Engine light; resets monitors
- View freeze Frame data to determine the cause of fault codes
- Displays monitor and I/M readiness status
- Retrieves vehicle information - VIN, CIN, CVN
DIGITAL GAUGES
Measure; Monitor 4 different sets of real-time engine data simultaneously.
- Fuel system status
- Vehicle speed
- Engine coolant temperature
- Fuel rail pressure
- Intake manifold absolute pressure
- Engine RPM
- Calculated engine load value
- Ignition timing
- Intake air pressure
- Absolute throttle position
- Battery voltage
- Short term fuel trim
- Oxygen sensor output voltage
- Airflow rate
- Commanded secondary air status
TRIP COMPUTER
Display useful information to help manage fuel consumption such as Kilometers per Liter (KPL), fuel range, trip time, etc.
- Maximum speed
- Average speed
- Driving time
- Driving distance
- Fuel used
- Trip fuel economy
- Distance to empty
- Time to empty
- Fuel to empty
- Engine power
DATA MEMORY
The 4-Mode OBD2 Computer saves up to 300 hours of driving data, allowing retrieval of information from each trip.
- Time and date of each trip
- Distance travelled for each trip
- Maximum speed during each trip
- Time over speed
- Number of times of extreme acceleration during each trip
- Number of times of extreme deceleration during each trip
- Number of hard acceleration and braking
- Average speed
- Average fuel consumption
Kit Includes:
- 4-Mode OBD2 Computer
- Velcro mounting strips
- OBD2 DLC connector cable
- USB cable
- User guide
Specifications:
- Display: Back-lit, 2 lines x 16 character display
- Operating Temp: -10°C to 70°C (14°F to 158°F)
- Storage Temp: -20°C to 70°C (-4°F to 158°F)
- Power: 8 to 18 volts provided via vehicle power
- Dimensions: Length x Width x Height
- 126mm (5in) x 41.6mm (1.61in) x 26.6mm (1.05in)
- Net Weight: 0.30kg (0.60lb)
- Gross Weight: 0.35kg (0.72lb)
