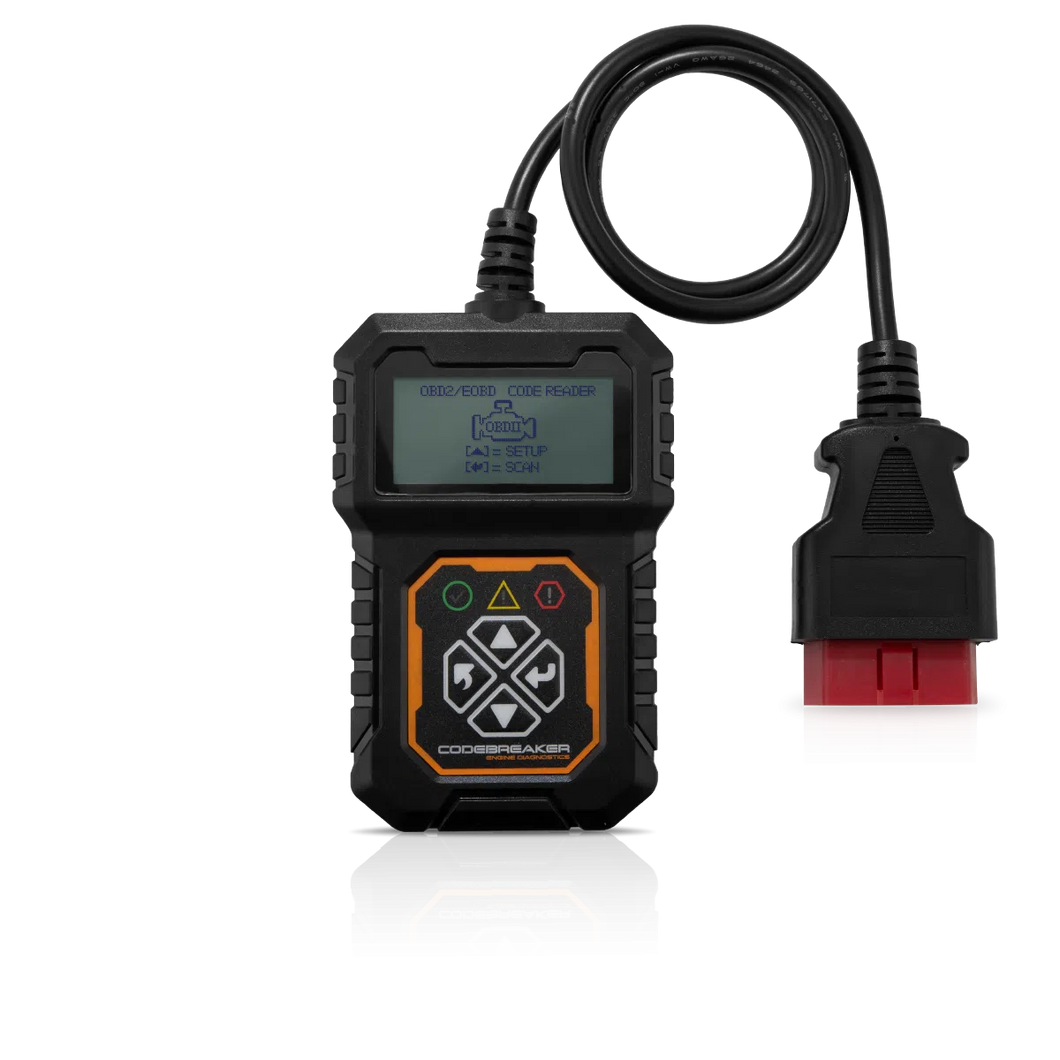

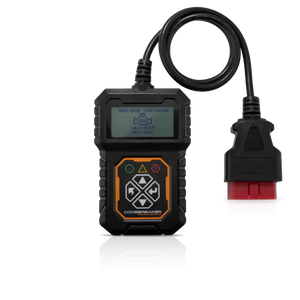

CODEBREAKER HANDHELD OBD2 SCAN TOOL
The home mechanics friend, this code reader scans your vehicles ECU, diagnosing any issues and displaying them clearly on screen.
Diagnosing any problems present in your vehicles ECU.
Features:
Read diagnostic trouble codes
Clear diagnostic trouble codes
View I/M readiness system check status
Professional codes analysis database
Real-time data streams
Freeze frame data
View vehicle information
Specifications:
Operating Voltage: 8V to 25V
Operating Current: 52mA (Max)
Operating Temp: -20°C to 70°C (-4°F to 158°F)
Storage Temp.: -30°C to 80°C (-22°F to 176°F)
Display: 128 x 64 dot matrix monochrome, with white backlight
Multilingual Operating System
Compatible with vehicles utilising the following Protocols.
- J1850 VPW
- J1850 PWM
- ISO 9141 - 2
- ISO 14230 - 4 (KWP FAST)
- ISO 14239 - 4 (KWP5BAUD)
- ISO 15765 - 4 (CAN 11/250)
- ISO 15765 - 4 (CAN 11/500)
- ISO 15765 - 4 (CAN 29/250)
- ISO 15765 - 4 (CAN 29/500)
