BOSCH COMMON RAIL NOZZLE KIT 1KD TOYOTA

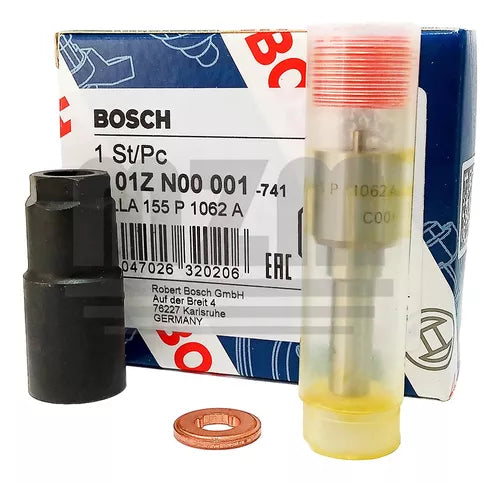

Kit contains Nozzles and accessories for 4 x Injectors. Suits OE injector no. 095000-
829X, 095000-822X, 095000-856X

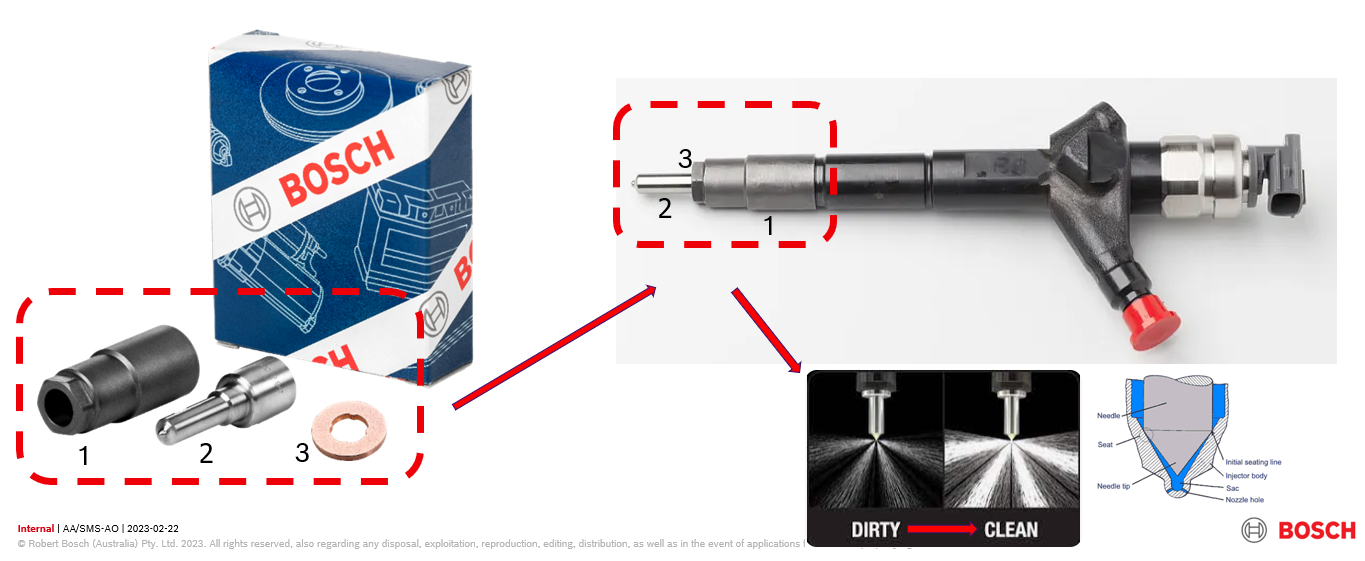

Quality assurance: Replace common rail nozzle as a set
The common market practice for first-stage repairs of the common rail injection system is to replace the nozzle only. Bosch recommends replacing the nozzle, cap nut, and high-pressure seal ring altogether for greater repair quality assurance since they are developed and tested for functionality, quality, and safety in unison.

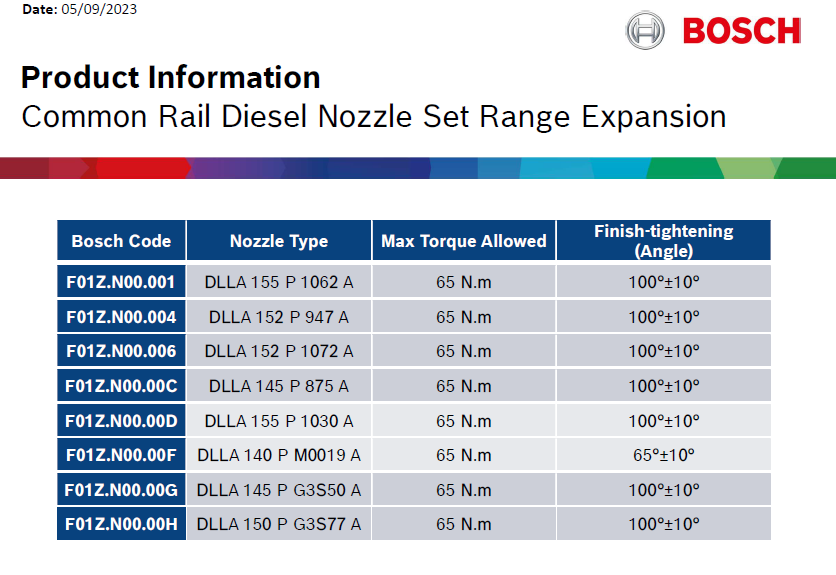

Bosch Code Nozzle Type Max Torque Allowed
Finish-tightening
(Angle)
F01Z.N00.001 DLLA 155 P 1062 A 65 N.m 100°±10°
F01Z.N00.004 DLLA 152 P 947 A 65 N.m 100°±10°
F01Z.N00.006 DLLA 152 P 1072 A 65 N.m 100°±10°
F01Z.N00.00C DLLA 145 P 875 A 65 N.m 100°±10°
F01Z.N00.00D DLLA 155 P 1030 A 65 N.m 100°±10°
F01Z.N00.00F DLLA 140 P M0019 A 65 N.m 65°±10°
F01Z.N00.00G DLLA 145 P G3S50 A 65 N.m 100°±10°
F01Z.N00.00H DLLA 150 P G3S77 A 65 N.m 100°±10°
