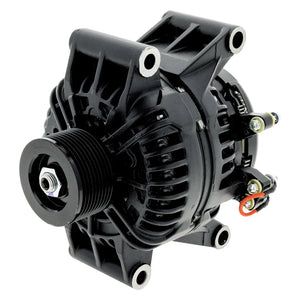

JAYLEC HIGH PERFORMANCE BLACK SERIES ALTERNATOR
ALT 12V 230A INT FAN, PAD FIELD ISOLATED, ABOVE EARTH
| Voltage | 12V |
| Amperage | 250A (COLD) 230A (HOT) |
| Mount Leg ID | 108MM |
| C-C Mounts | PAD |
| Hole ID Top | 13MM |
| Hole ID Bottom | 13MM |
| Shaft Size | 22MM |
| Pulley Type | 12PV, FIXED |
| Pulley Belt Width | |
| Pulley Grooves | 12 |
| Pulley diameter | |
| Regulator Type | INTERNAL |
| Series | BLACK SERIES |
| Connections Plug # | |
| Terminals | B+, B-, D+, W |
| Excitation | INTERNAL |
| Ground | INSULATED |
