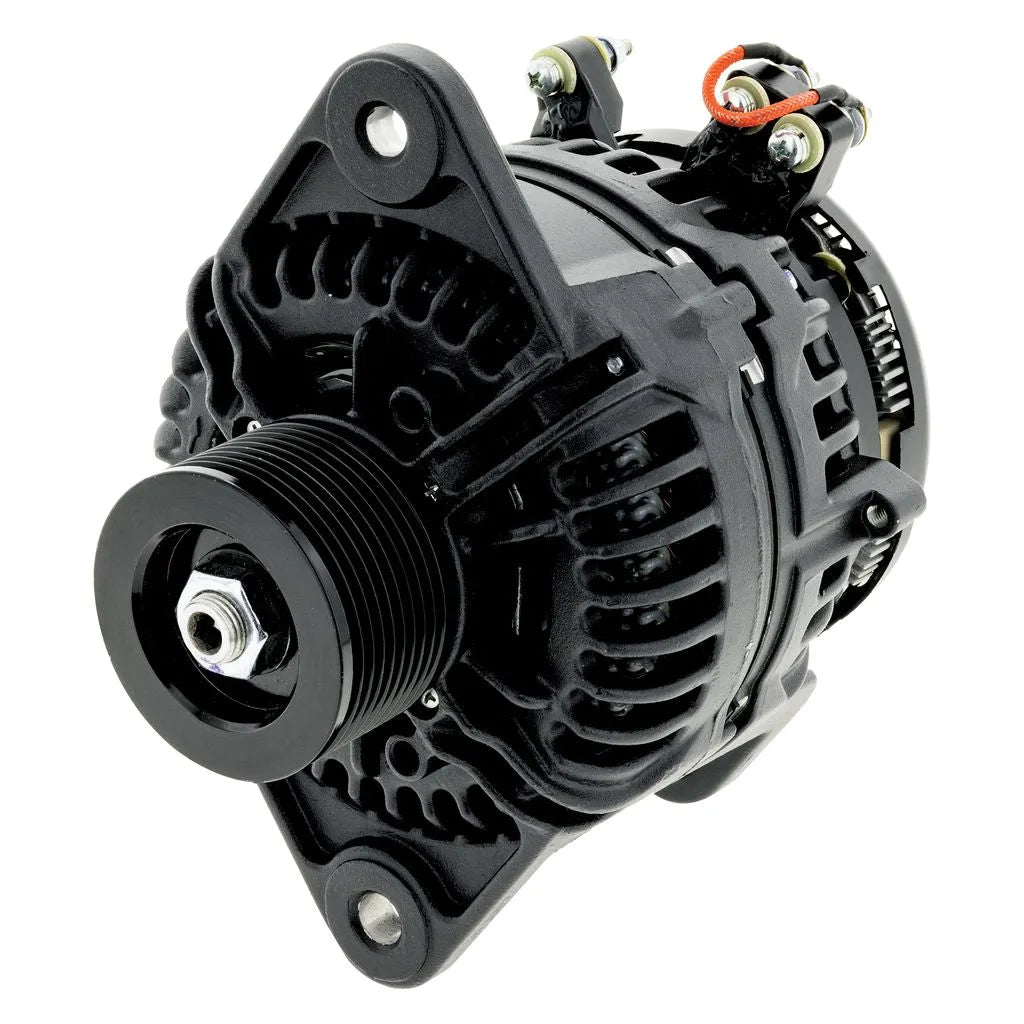

JAYLEC HIGH PERFORMANCE BLACK SERIES ALTERNATOR
ALT 12V 230A INT FAN, J180 FIELD ISOLATED, ABOVE EARTH
| Voltage | 12V |
| Amperage | 250A (COLD), 230A (HOT) |
| Mount Leg ID | 101MM |
| C-C Mounts | 198MM |
| Hole ID Top | 3/8"UNC |
| Hole ID Bottom | 13MM |
| Shaft Size | 22MM |
| Pulley Type | 12PV, FIXED |
| Pulley Belt Width | |
| Pulley Grooves | 12 |
| Pulley diameter | |
| Regulator Type | INTERNAL, FIELD ISOLATED |
| Series | |
| Connections Plug # | |
| Terminals | B+, B-, D+, W |
| Excitation | INTERNAL |
| Ground | INSULATED |
| Weight (Kg) | 8.8KG |
