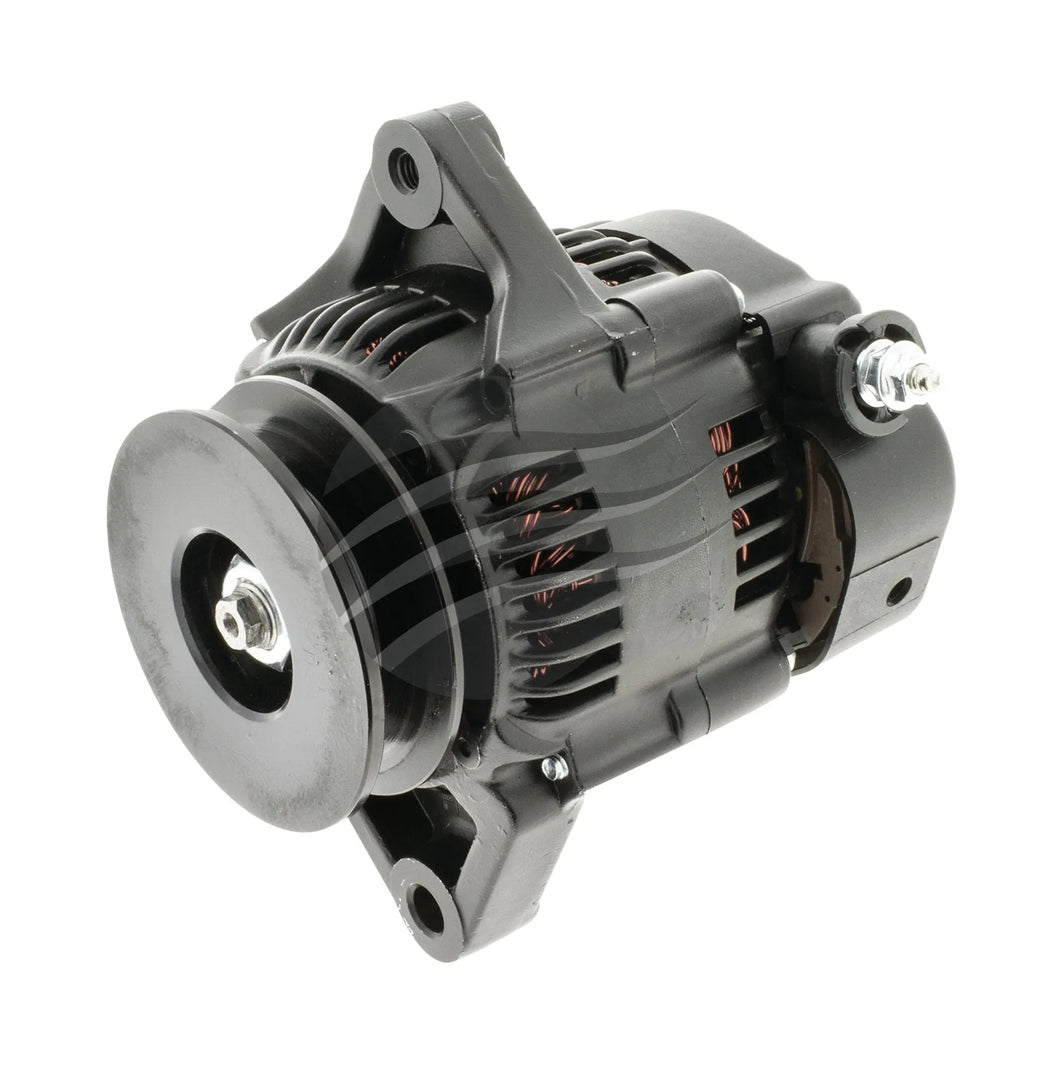

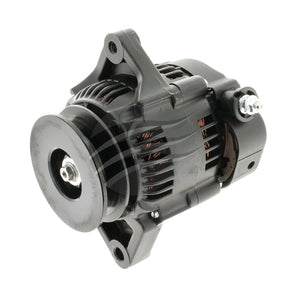

JAYLEC HIGH PERFORMANCE BLACK SERIES ALTERNATOR
ALT 12V 55A LIGHT WEIGHT SINGLE WIRE APPLICATION
USE 53-903 FOR 5PV PULLEY NO WARNING LIGHT NO PIN CONECTION TO BE USED
| Voltage | 12V |
| Amperage | 55A HOT (96C) COLD 70A (40C) |
| Mount Leg ID | 58MM |
| C-C Mounts | 151MM |
| Hole ID Top | M8 |
| Hole ID Bottom | 10MM |
| Shaft Size | 15MM |
| Pulley Type | SINGLE "A" |
| Pulley Belt Width | 23MM |
| Pulley Grooves | 1 |
| Pulley diameter | 89MM |
| Regulator Type | INTERNAL |
| Series | |
| Connections Plug # | N/A SINGLE WIRE |
| Terminals | B+ |
| Excitation | INTERNAL |
| Ground | NEGATIVE |
| Weight (Kg) | 3.42KG (ALT WEIGHT ONLY) |
