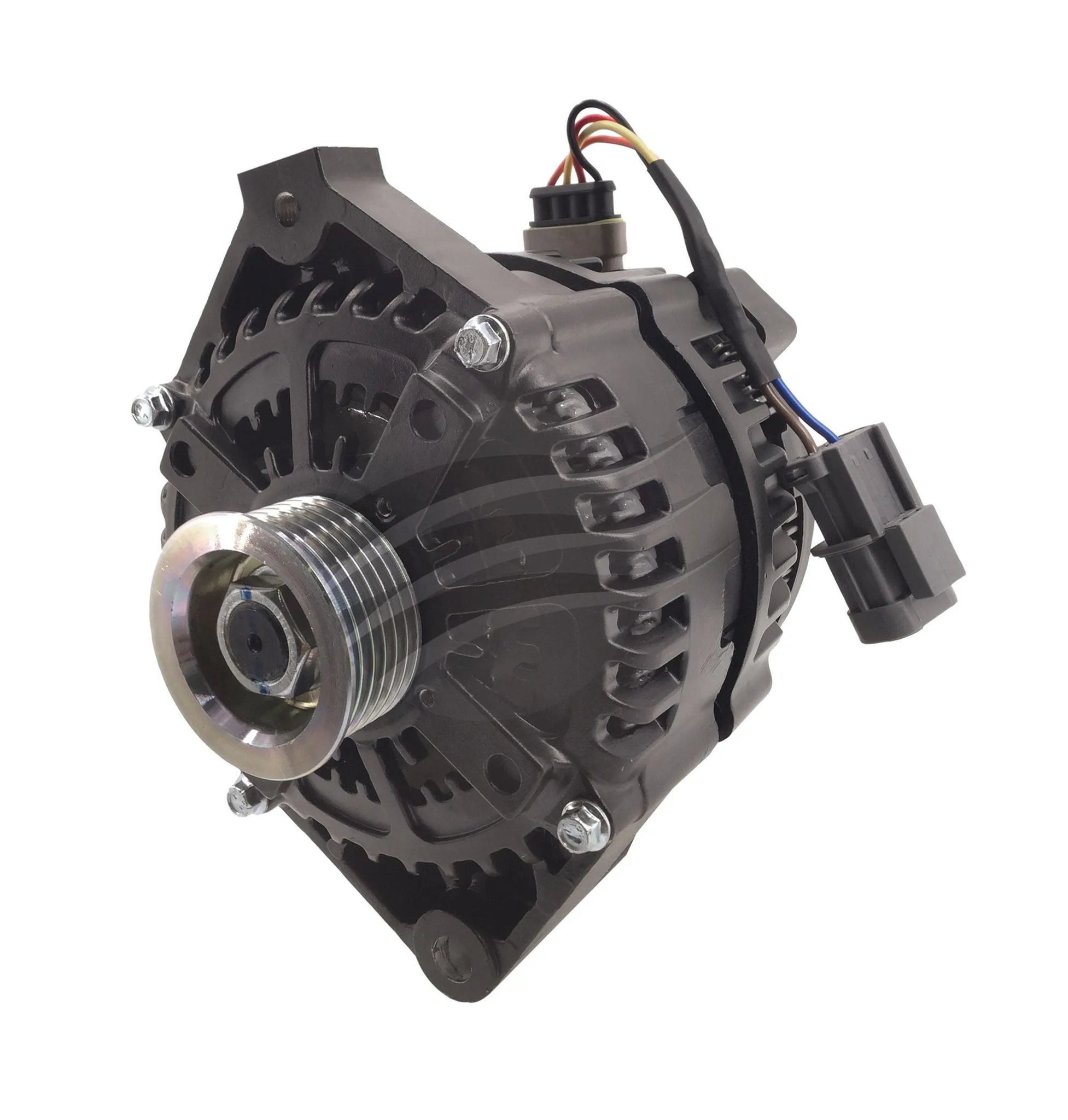

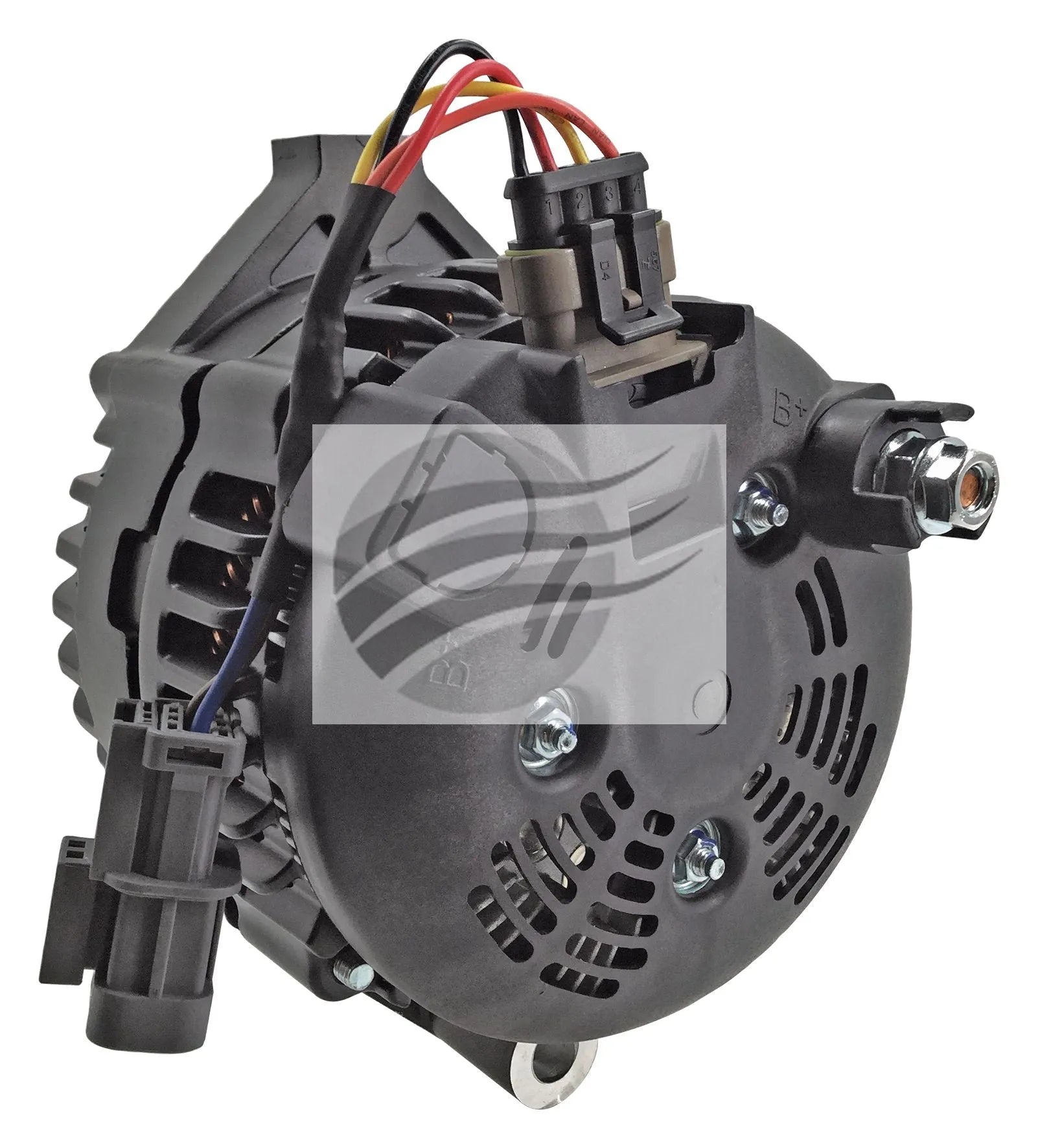

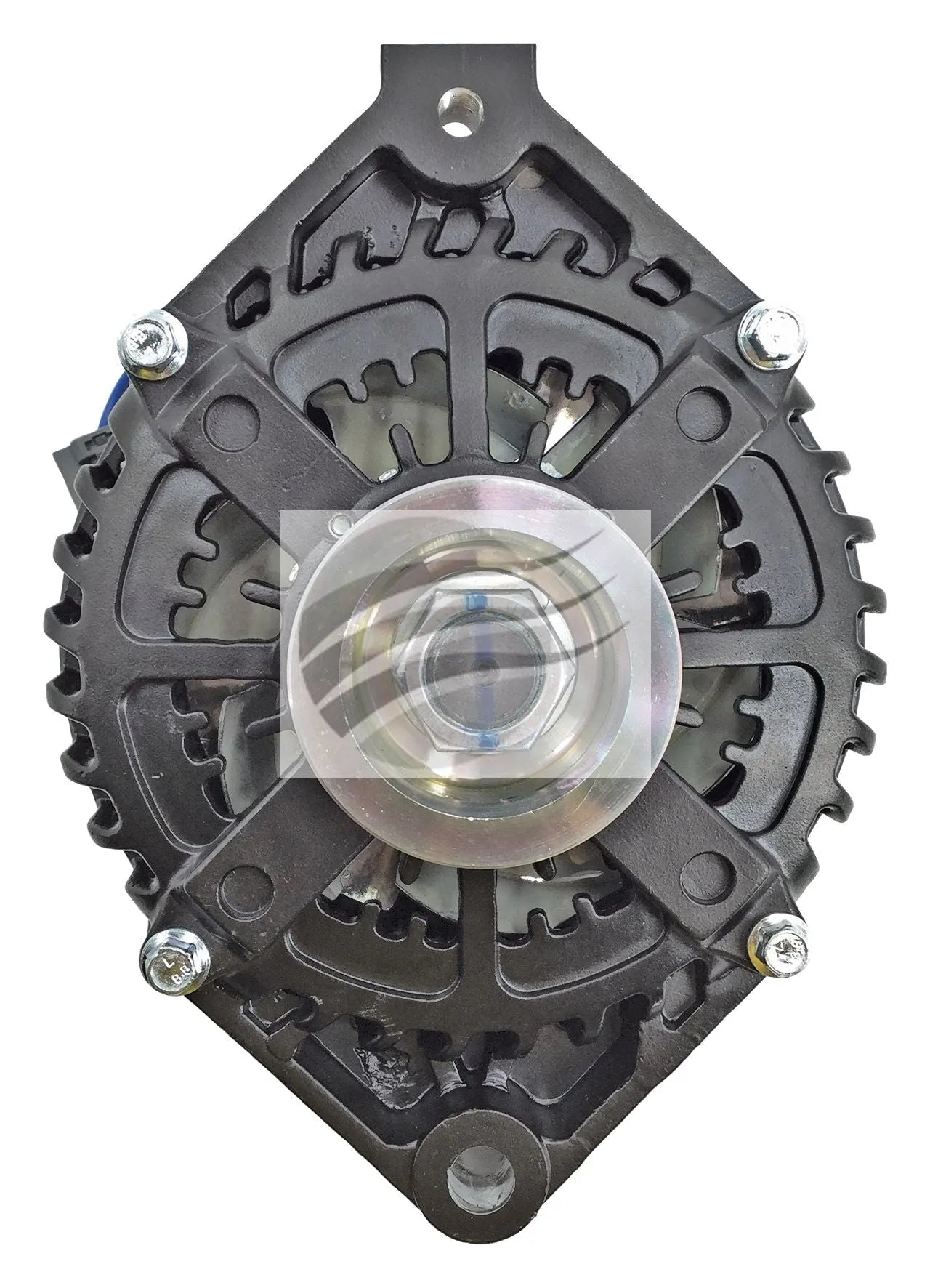

JAYLEC HIGH PERFORMANCE BLACK SERIES ALTERNATOR
ALT 12V 240A INT FAN, FORD 6CYL, WINDSOR, CLEVELAND APPS
BATTERY POSITIVE WIRING MUST BE UPGRADED TO AT LEAST 6mm CABLE TO HANDLE THE EXTRA CURRENT
| Voltage | 12V |
| Amperage | 240A |
| Mount Leg ID | 76MM |
| C-C Mounts | 175MM |
| Hole ID Top | M8 |
| Hole ID Bottom | 11MM |
| Shaft Size | 17MM |
| Pulley Type | 6PV, FIXED |
| Pulley Belt Width | |
| Pulley Grooves | 6PV |
| Pulley diameter | 56MM |
| Regulator Type | INTERNAL |
| Series | |

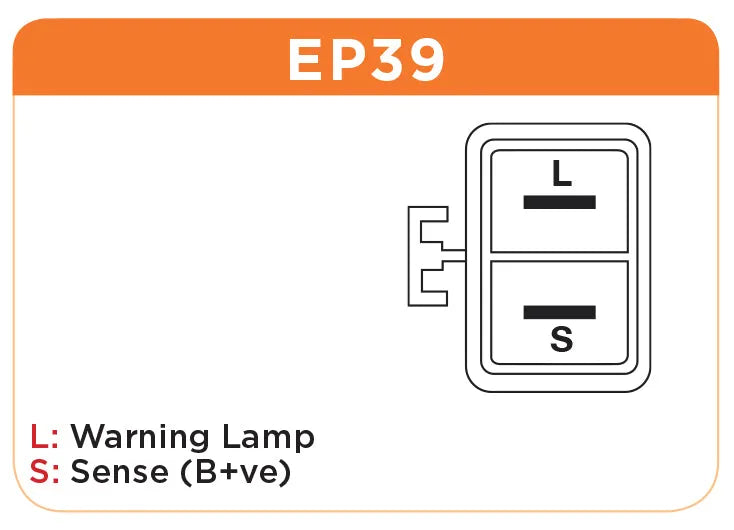

| Connections Plug # | EP39 |
| Terminals | B+, L, S |
| Excitation | EXTERNAL |
| Ground | NEGATIVE |
