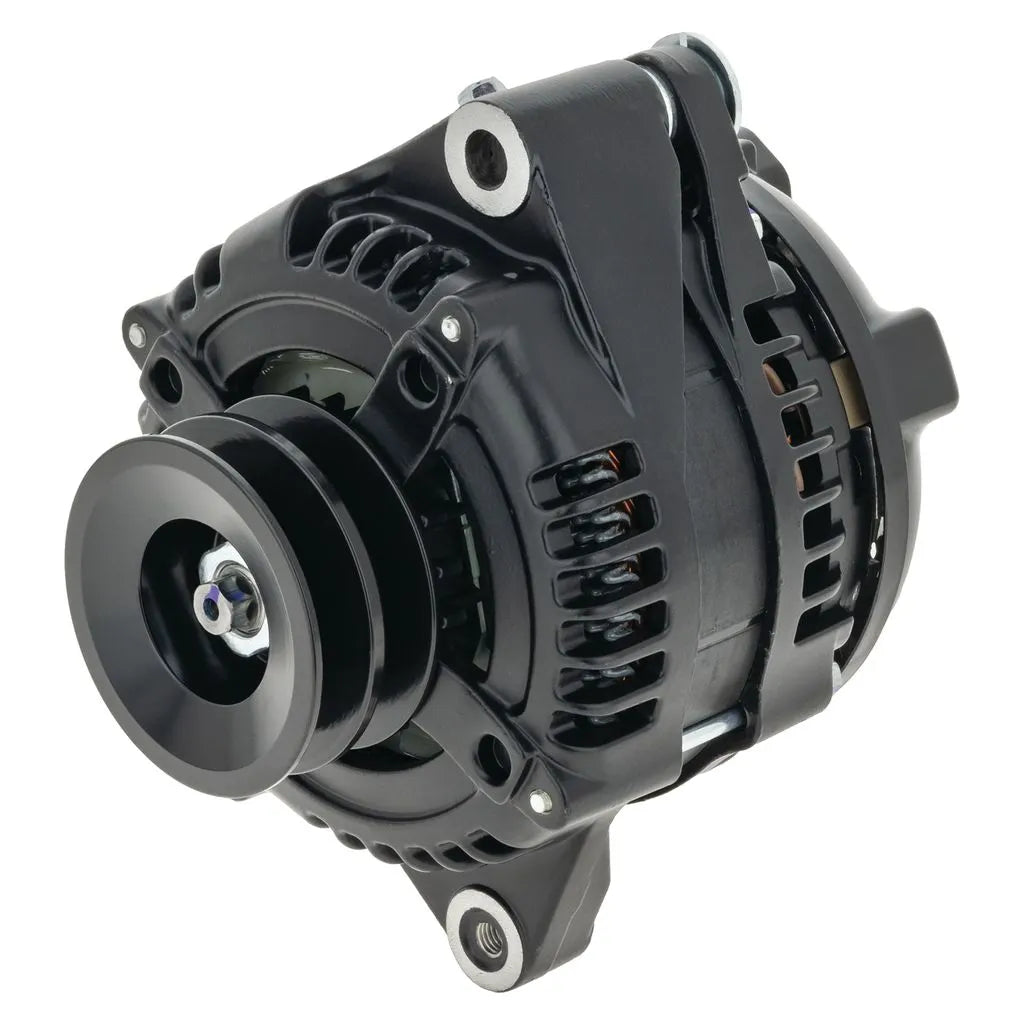

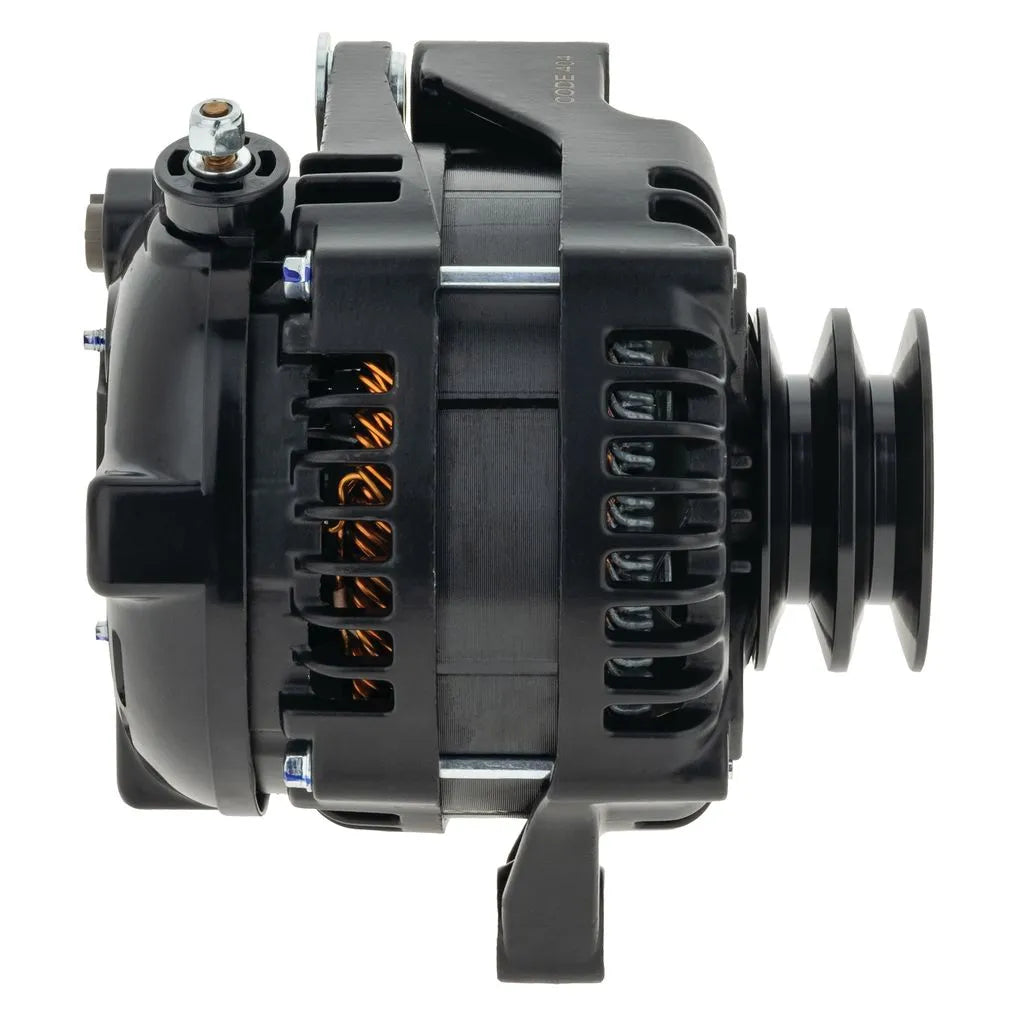

JAYLEC HIGH PERFORMANCE BLACK SERIES ALTERNATOR
ALT 12V 160A, TOYOTA HILUX, PRADO, HIACE W/- 1KZ, 1KZTE
PLEASE NOTE A BATTERY POSITIVE WIRING UPGRADE IS NEEDED FOR THIS ALTERNATOR.
| Voltage | 12V |
| Amperage | 160A |
| Mount Leg ID | 58MM |
| C-C Mounts | 160MM |
| Hole ID Top | M8 |
| Hole ID Bottom | 10MM |
| Shaft Size | 17MM |
| Pulley Type | TWIN "A" |
| Pulley Belt Width | |
| Pulley Grooves | 2 |
| Pulley diameter | 72MM |
| Regulator Type | INTERNAL |
| Series | |
| Connections Plug # | EP24 |
| Terminals | B+, S, IG, L |
| Excitation | EXTERNAL |
| Ground | NEGATIVE |
| Weight (Kg) | 9.0KG |
