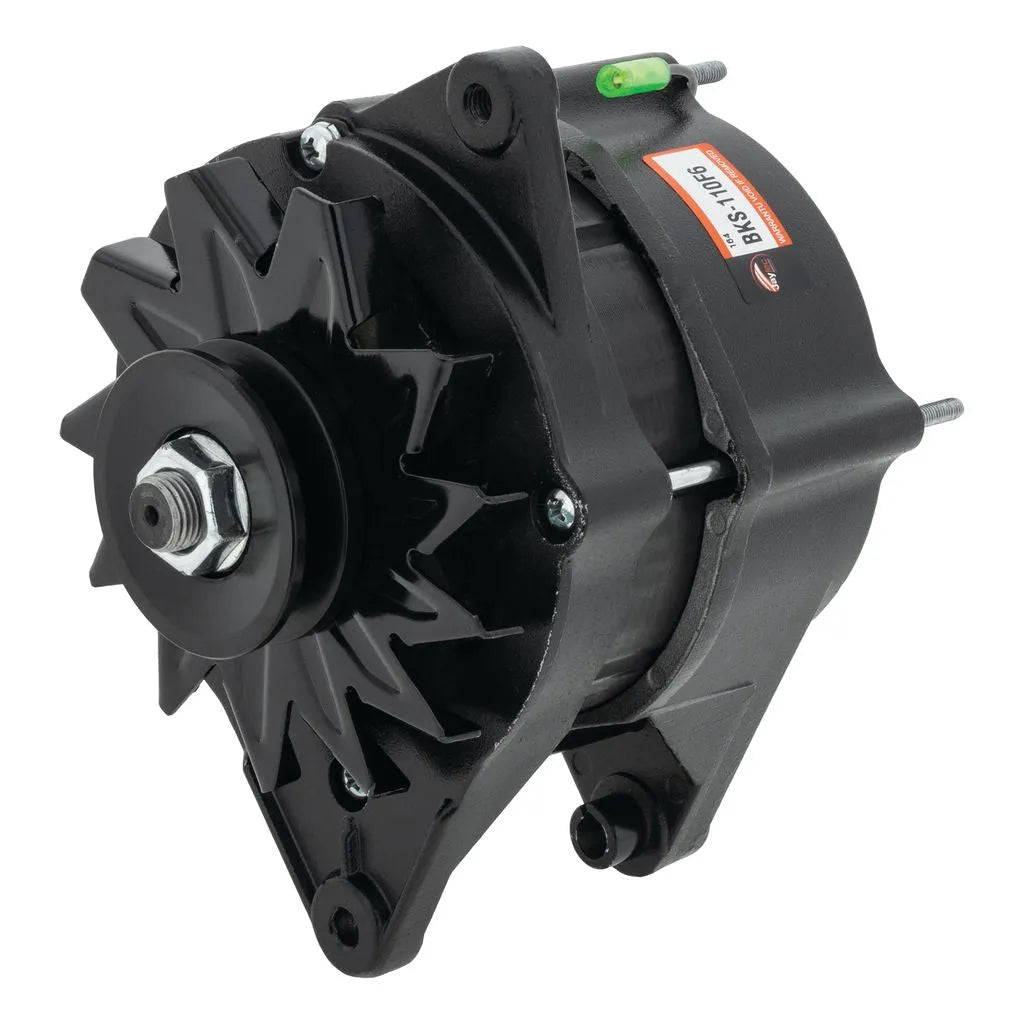

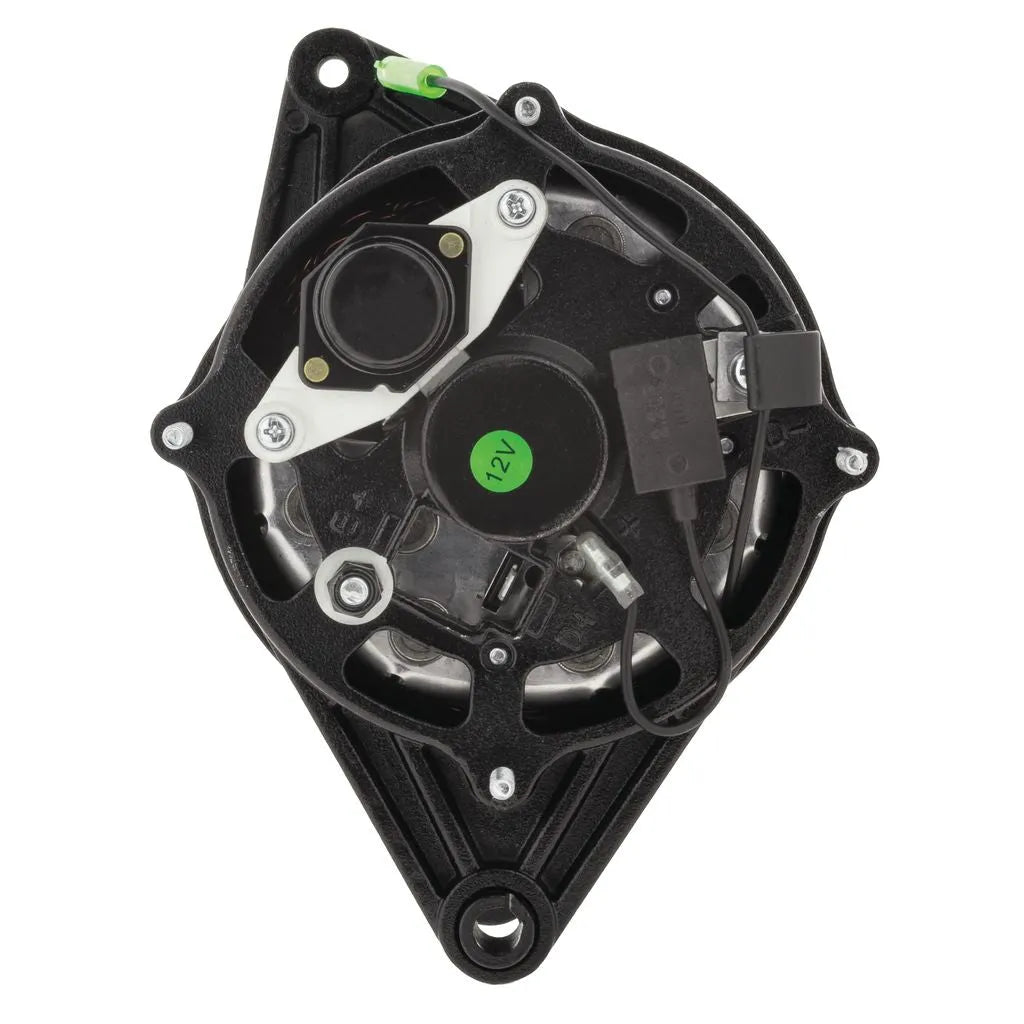

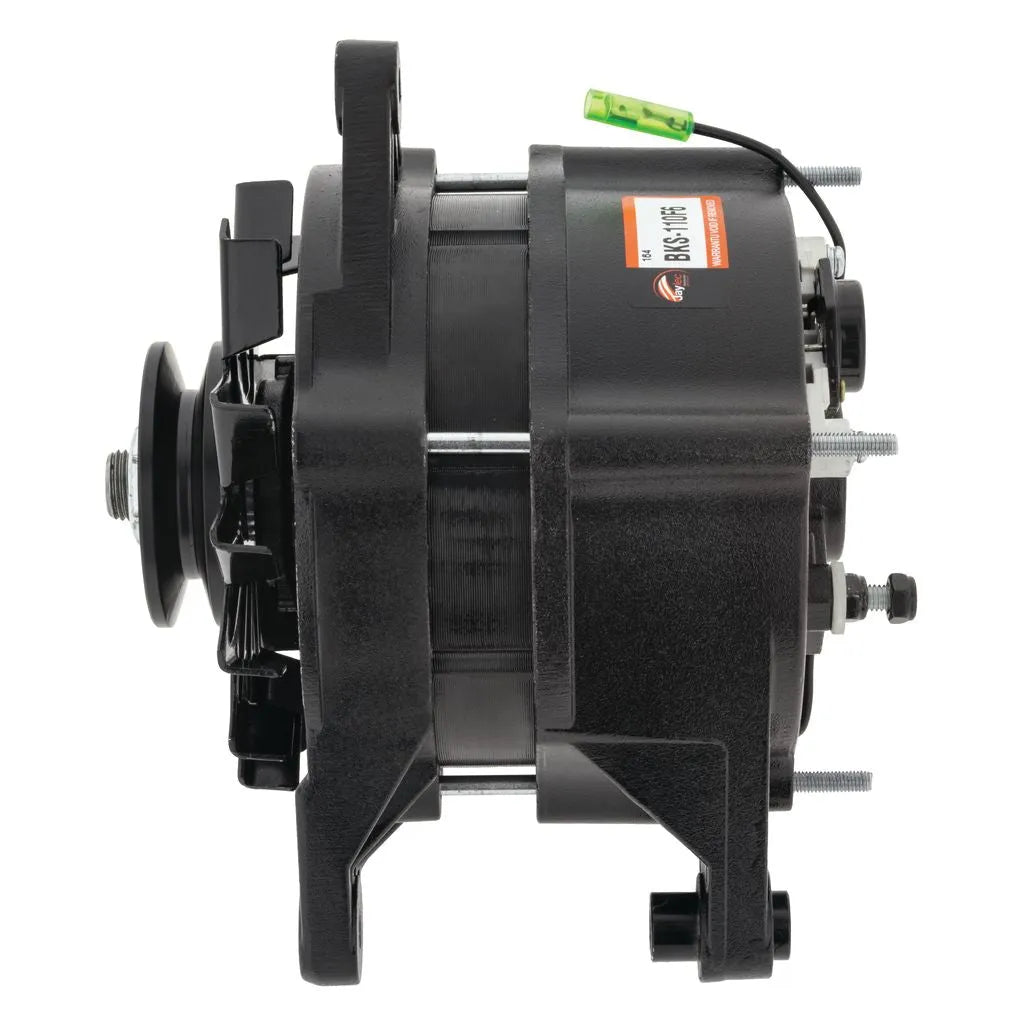

JAYLEC HIGH PERFORMANCE BLACK SERIES ALTERNATOR
ALT 12V 110A FALCON XE XF 6CYL NON EFI 3.3L -> 4.1L
| Inside Foot to Foot | 58MM |
| Pivot Hole Diameter | |
| Pivot Lug Length | |
| Voltage | 12V |
| Amperage | 125A (COLD) 125A (HOT)110A |
| Mount Leg ID | |
| C-C Mounts | 180MM |
| Hole ID Top | M8 |
| Hole ID Bottom | 8MM |
| Shaft Size | 17MM |
| Pulley Type | SINGLE "A" |
| Pulley Belt Width | |
| Pulley Grooves | 1 |
| Pulley diameter | 66MM |
| Regulator Type | INTERNAL |
| Series | |
| Connections Plug # | EP73 |
| Terminals | B+, D+, W |
| Excitation | EXTERNAL |
| Ground | NEGATIVE |
| Weight (Kg) | 6.5KG |
