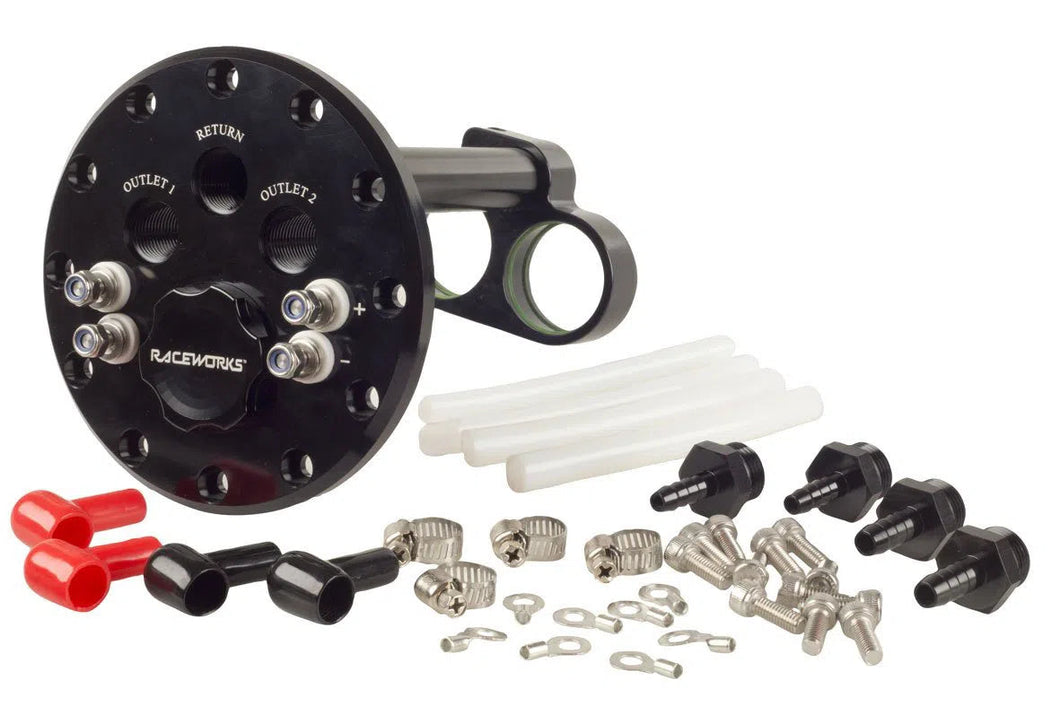

RACEWORKS FUEL CELL SINGLE/TWIN HANGER SUITS 38MM PUMPS
Hangers
Raceworks Hangers are an addition to our fuel cell range, allowing the use of modern high-flow intank fuel pumps. They suit a range of pump diameters from 37-40mm, and are height adjustable. They can be used with custom fuel tanks also, through the use of a steel or aluminium weld ring.
Specifications
Drop in hanger with filler for Raceworks Fuel Cells. Adjustable in height
Can be configured with either a single or twin pumps
Dual Stainless Steel Electrical Terminals with PTFE Seals, allowing the pumps to be staged
AN-8 ORB
Anodised in Black, providing corrosion resistance when used with E85
Viton O-rings supplied with PTFE Intank Hose and Stainless Steel clamps
Suitable for Tanks with height 180-250mm
Ti Automotive F Series pumps dont sit level, due to Raceworks Fuel Cell Filler holes being too small to install the pumps. Therefore, use one pump with FPS-067 45deg strainer. Ensure both strainers are bottomed out on the tank floor. F Series pumps will happily lift 1.5in. This method is tested and proven to work successfully.
;
| Suits | Part Number |
|---|---|
| 38MM Pumps | ALY-132BK |
Compatibility List
| Raceworks | Pierburg |
|---|---|
| EFP-501 | 7.21088.62.0 |
