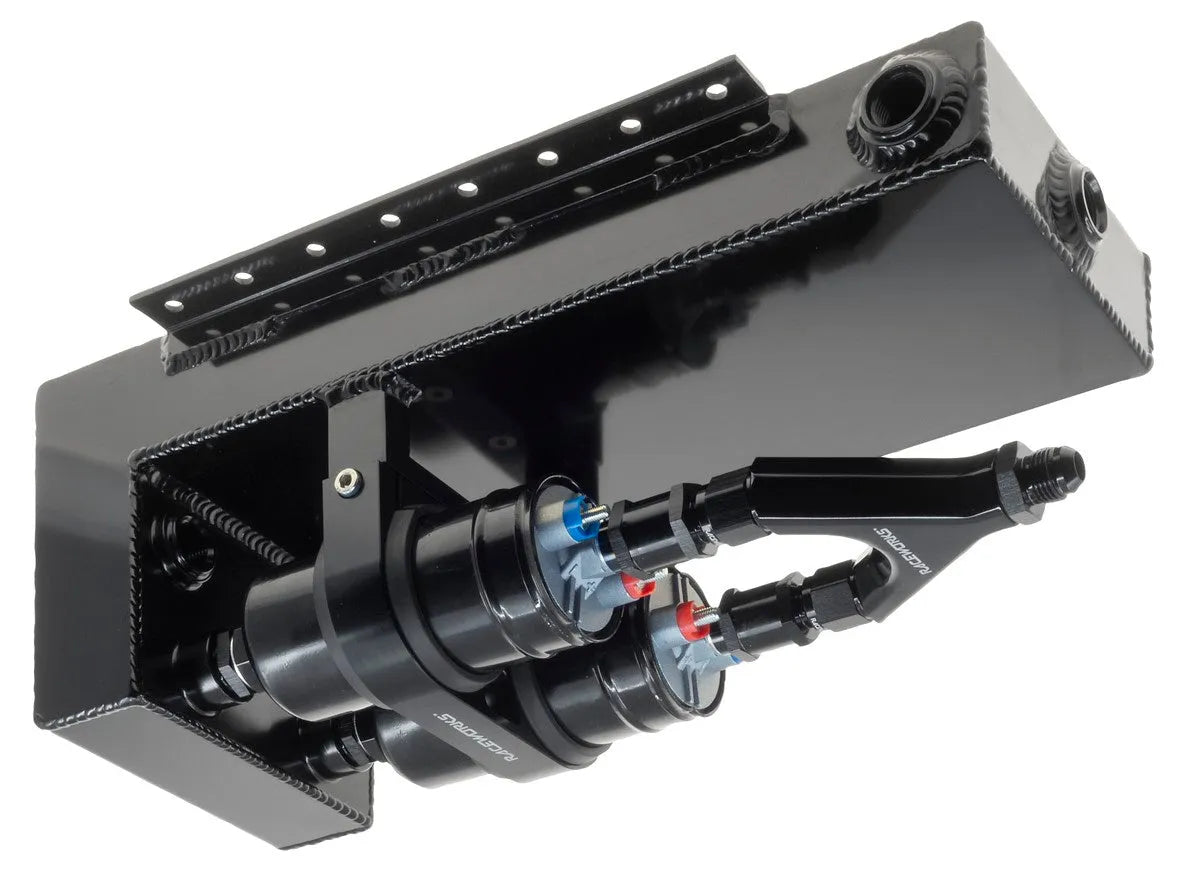

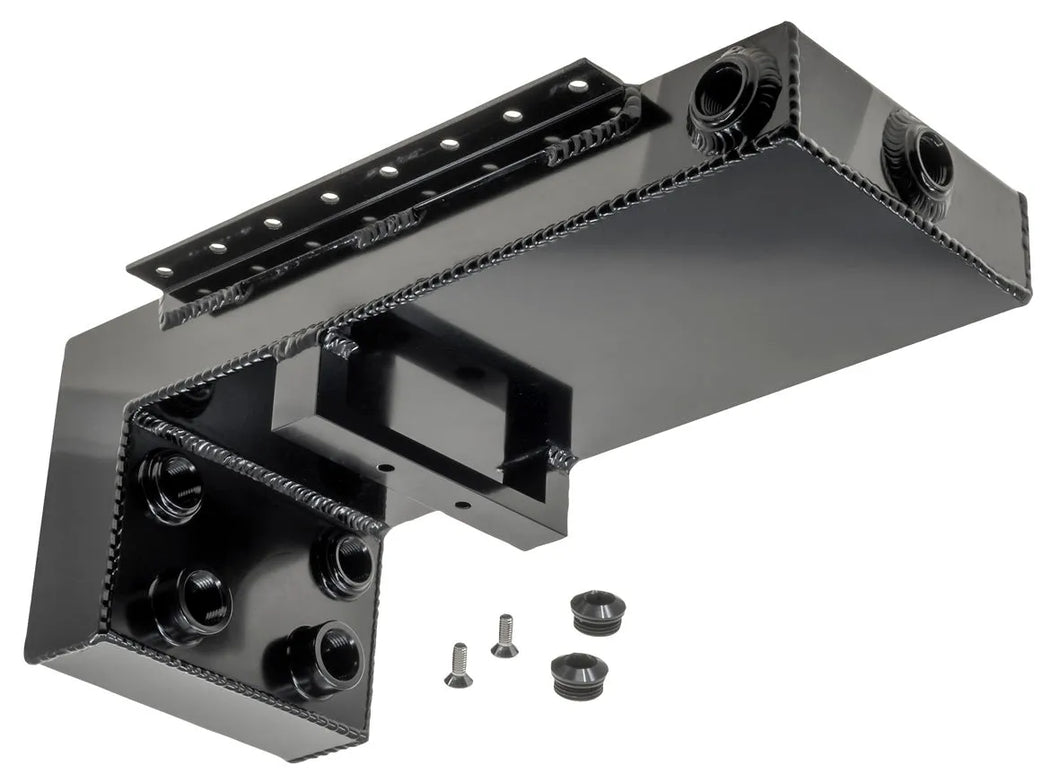

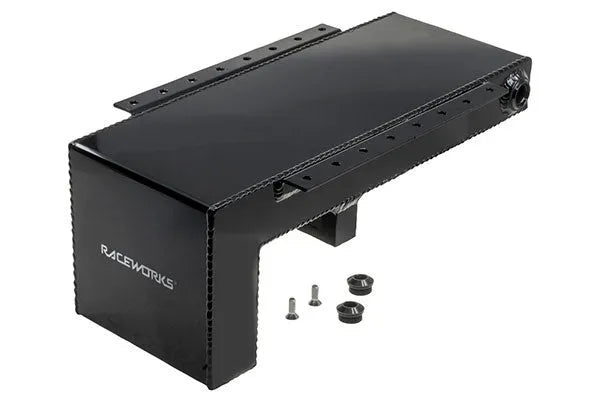

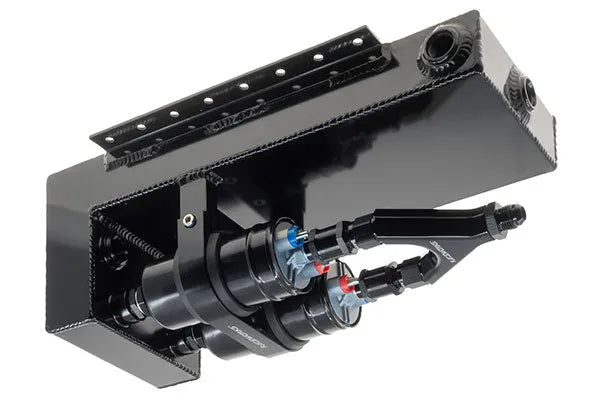

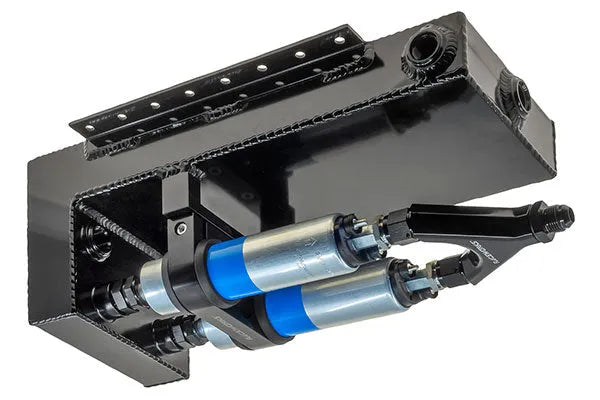

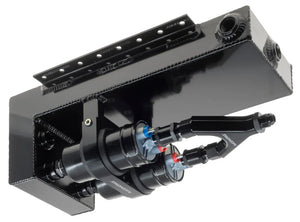

RACEWORKS 2.5L UNDERCAR SURGE TANK. SUITS SINGLE/TWIN PUMPS
Can be used with either a single or twin pumps. Pump outlets are AN-10 Female Flare ports. Can also be used with ORB fittings.
Also contains 5x AN-8 O-Ring Ports.
Height : 150mm, Width without brackets : 150mm, Length without fittings : 390mm.
Includes 2 x AN-8 O-Ring Plugs.
Designed for use with either of the below Fuel Pump Brackets
Surge Tanks and Catch Cans Plumbing Guide
| Suits | Bracket Part Number |
|---|---|
| 60mm pumps (044) | ALY-002BK |
| 43.5mm Pumps (Pierburg/Ti Automotive) | ALY-055BK |
Surge Tanks and Catch Cans Plumbing Guide
For Single outlet when using twin pumps, use either RWF-940-08BK log, or RWF-939-08-10BK Y-Block
Pumps, One Way Valves and Y Block not included
