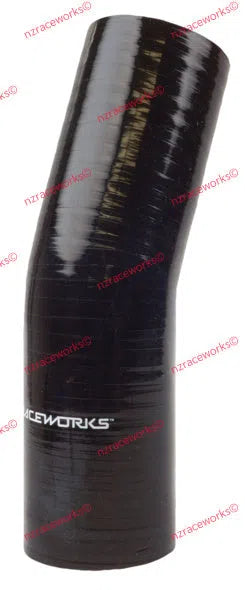

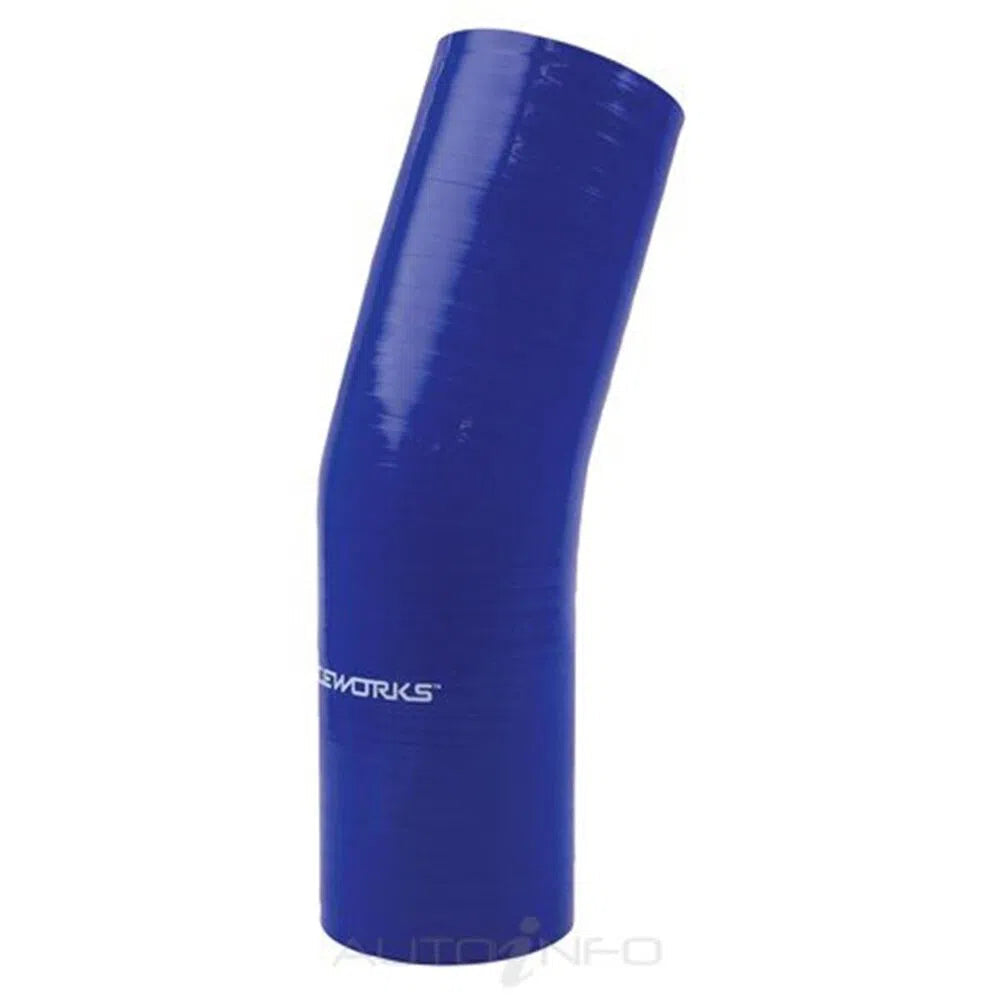

RACEWORKS SILICONE ELBOWS
Raceworks Silicone Hose is hand made and contains 5mm walls constructed from 4-ply reinforced silicone polyester, offering burst pressures of up to 348psi (see application table for individual ratings) and a temperature range of -40 to +180 degrees Celsius. All hoses are UV, ozone and electrochemically resistant to avoid fading and separation. NOTE Silicone hose is not fuel safe.
All Raceworks hoses feature solid 5mm walls constructed from 4-ply reinforced silicone polyester.
| Dia. Imp. | Dia. Metric | Part # Blue | Part # Black | Lth mm | Min. Burst Pres. | Centre Line Radius |
|---|---|---|---|---|---|---|
| 2.00 | 51mm | SHE-023-200BE | SHE-023-200BK | 125-125mm | 218 PSI | 51mm |
| 2.25 | 57mm | SHE-023-225BE | SHE-023-225BK | 125-125mm | 174 PSI | 57mm |
| 2.50 | 63mm | SHE-023-250BE | SHE-023-250BK | 125x125mm | 174 PSI | 63mm |
| 2.75 | 70mm | SHE-023-275BE | SHE-023-275BK | 125x125mm | 174 PSI | 70mm |
| 3.00 | 76mm | SHE-023-300BE | SHE-023-300BK | 125x125mm | 174 PSI | 76mm |
| 3.25 | 82mm | SHE-023-325BE | SHE-023-325BK | 125x125mm | 174 PSI | 82mm |
| 3.50 | 89mm | SHE-023-350BE | SHE-023-350BK | 125x125mm | 145 PSI | 89mm |
| 3.75 | 95mm | SHE-023-375BE | SHE-023-375BK | 125x125mm | 145 PSI | 95mm |
| 4.00 | 102mm | SHE-023-400BE | SHE-023-400BK | 125x125mm | 145 PSI | 102mm |
