Coil On Plug KV Quick Probe
Overview
The fastest way to verify the firing of a Coil Over Plug ignition coil and spark plug.
Eliminates the need for back probing coil wires
Eliminates the need for disassembly to test at the ignition coil or spark plug
Variable sensitivity for greater diagnostic accuracy and expanded application coverage
Allows the technician to determine if the coil is firing the spark consistently, intermittently misfiring or not firing at all.
Testing for both the KV and arc (Glow) duration output to ensure the coil over plug is actually firing the spark plug
Includes:
Super bright KV and ARC indicator LEDS

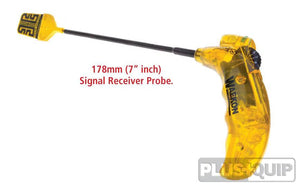

178mm Signal Receiver Probe
Adjustable sensitivity thumb wheel
User Guide
EQP-016 KV and ARC tester variable sensitivity
Specifications
Dimensions
Length: 220mm
Width: 70mm
Height: 50mm
Weight: 0.15kg
Instruction
Simply press the 178mm long probe against the ignition coil and use the thumb wheel to adjust the sensitivity until the LED begins to flash.
Each time the unit detects a spark firing it will flash the bright LED strobe indicating sufficient kV and flash the green LED indicating sufficient arc duration.
LED strobe flashes when the high voltage (kV) coil output is detected
Green arc indicator LED flashes when the presence of arc (glow) duration is detected testing for both the KV and arc (Glow) duration output to ensure the coil over plug is actually firing the spark plug
EQP-016 Ignition Quick Probe ? Coil Over Plug KV and ARC Tester with Variable Sensitivity
