RACEWORKS BILLET FUEL FILTER ELEMENTS | ALY-077BKL

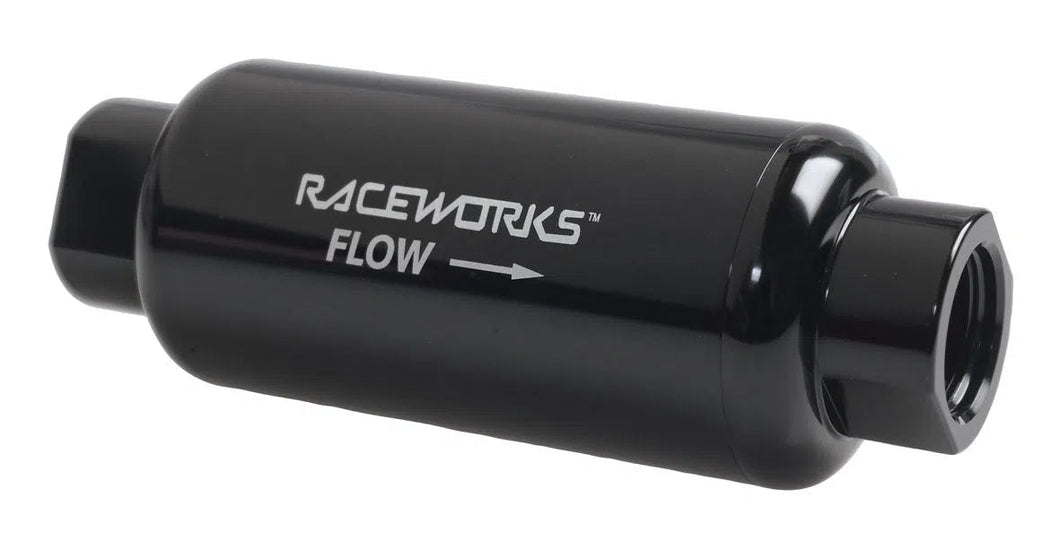

Raceworks Billet inline filters contain a total filtration surface area of 374 square centimetres. The filters are directional and washable, and suitable for high horsepower applications, supporting up to 2400LPH @ 3Bar. See below for more detailed flow ratings.

INLINE FUEL FILTERS
Stainless lifetime elements and E85 Safe
AN-10 ORB. 50mm DIA. Body Length of 110mm. Overall Length is 140mm excluding Male Fittings.

Which Micron level is suitable? The lower the micron level, the finer the particle it filters, but the more restrictive the filter is on flow. Raceworks recommended a 100 or 75micron filter for use pre-pump, and a 40 or 10micron filter for use post-pump (Pre injectors).

Micron Maximum Flow Rating @ 3Bar Part Number
10 1500LPH ALY-077-10BK
40 1800LPH ALY-077-40BK
75 2100LPH ALY-077-75BK
100 2400LPH ALY-077-100BK

Maximum flow rate measured with a pressure drop across the filter of 2psi
