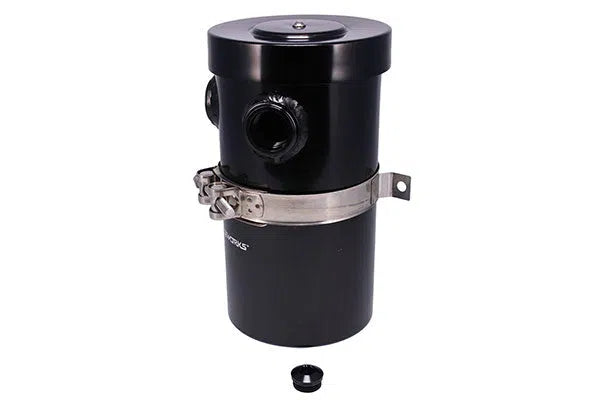

INTERNAL BREATHERS
These tanks cant be plumbed back to the intake, however they offer a neat, compact, stealth solution for you engine bay. Includes an ORB plug and T-Bolt style mounting clamp. The tanks breathe on the underside of the lid.
win AN-12 ORB Ports (Y-Shaped). Internally Baffled
| Volume | Body Height | Body Diameter | Max Height Inc Tap | Height with Drain Plug | Part Number |
|---|---|---|---|---|---|
| 1L | 172mm | 105mm (118mm Lid) | 205mm | 180mm | ALY-133BK |
| 2.4L | 262mm | 123mm (136mm Lid) | 270mm | ALY-196BK |
